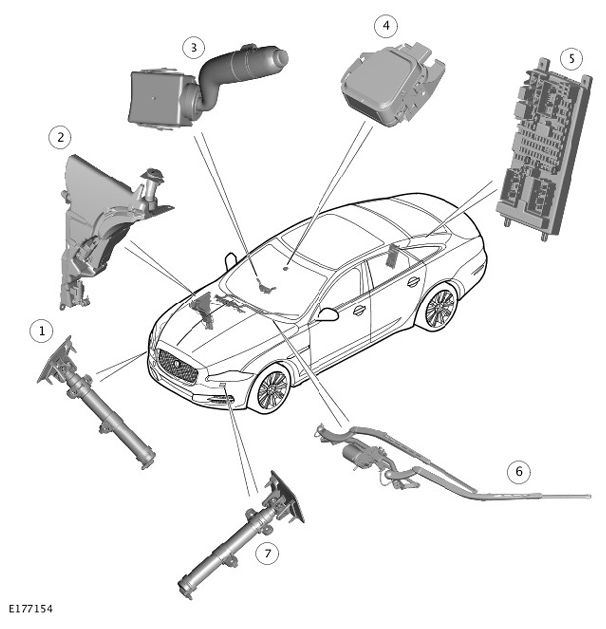

Component Location
WARNING: This page is about a different car, the 2019 Jaguar XJ and 2018 Jaguar XJ. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
|
| ITEM |
DESCRIPTION |
| 1 |
Right headlamp washer jet |
| 2 |
Washer fluid reservoir |
| 3 |
Wipers and washers control switch |
| 4 |
Rain/light sensor |
| 5 |
Central Junction Box (CJB) |
| 6 |
Windshield wiper assembly |
| 7 |
Left headlamp washer jet |
