Secondary Bulkhead Right Panel (G1872491): Removal

The following step(s) applies to: All vehicles

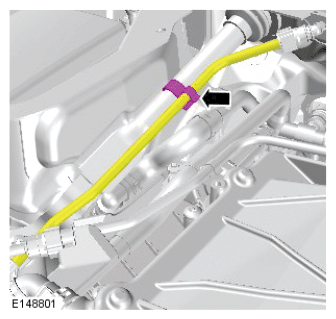

1. Refer to: Battery and Charging System article (General Information, Specifications).
2. Refer to: SECONDARY BULKHEAD LEFT PANEL .

   The following step(s) applies to: Vehicles with 5.0L or 3.0L petrol engine

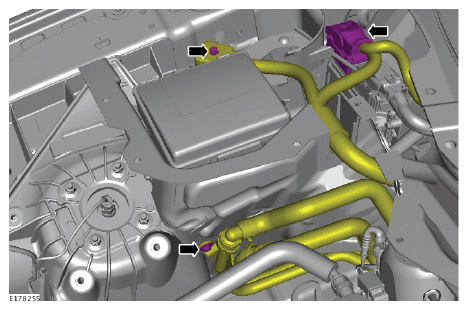

3. Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

   The following step(s) applies to: All vehicles

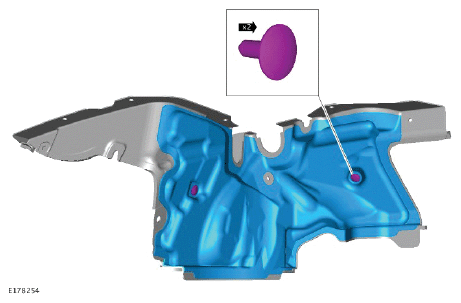

4. Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

   The following step(s) applies to: Vehicles with 5.0L engine

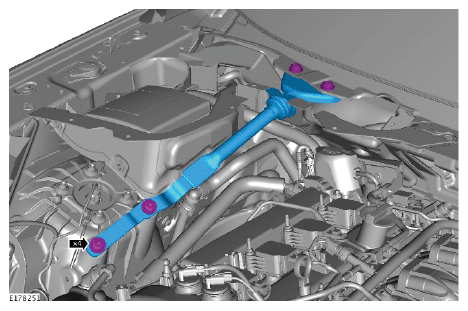

5. Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

   Torque:  12 Nm

   The following step(s) applies to: All vehicles

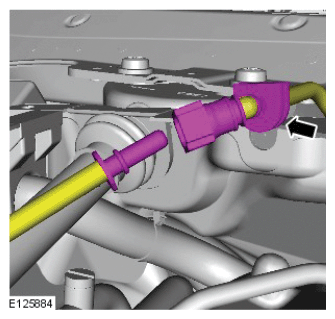

6. Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

   Torque:  55 Nm

   The following step(s) applies to: Left-hand drive vehicles

7. Refer to: RIGHT PEDESTRIAN PROTECTION HOOD ACTUATOR .

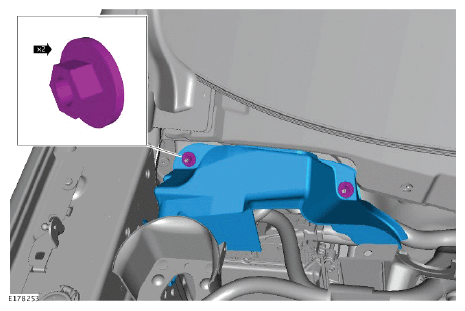

8. Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

   Torque:  7 Nm

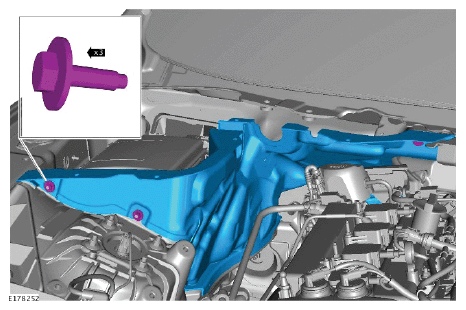

9. Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

   Torque:  8 Nm

   The following step(s) applies to: All vehicles

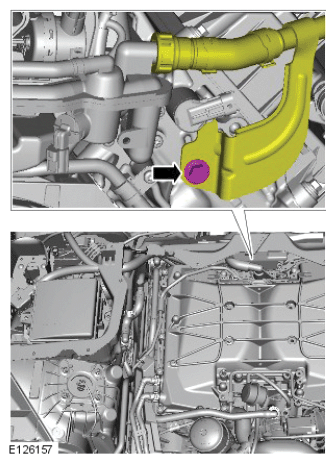

10. Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Torque:  7 Nm

11. NOTE: Do not disassemble further if the component is removed for access only.

    Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
