Secondary Bulkhead Left Panel (G1267456): Removal

WARNING: This page is about a different car, the 2019 Jaguar XJ. However, it is still accessible from the selected car via links, so may be relevant.

WARNING:

To avoid accidental deployment, the restraints control module backup power supply must be depleted. Wait at least one minute after disconnecting the battery ground cable(s) before commencing any repair or adjustment to the supplemental restraint system (SRS), or any component(s) adjacent to the SRS sensors. Failure to follow these instructions may result in personal injury.
Always wear safety glasses when working on an air bag equipped vehicle and when handling an air bag module. Failure to follow this instruction may result in personal injury.
To minimize the possibility of premature deployment, do not use radio key code savers when working on the supplemental restraint system. Failure to follow this instruction may result in personal injury.
To minimize the possibility of injury in the event of premature deployment, always carry a live air bag module with the bag and trim cover pointed away from the body. Failure to follow this instruction may result in personal injury.
To minimize the possibility of premature deployment, live air bag modules must only be placed on work benches which have been ground bonded and with the trim cover facing up. Failure to follow these instructions may result in personal injury.
Never probe the electrical connectors of air bag modules or any other supplemental restraint system component. Failure to follow this instruction may result in personal injury.
Painting over the driver air bag module trim cover or instrument panel could lead to deterioration of the trim cover and air bags. Do not for any reason attempt to paint discolored or damaged air bag module trim covers or instrument panel. Install a new component. Failure to follow this instruction may result in personal injury.

NOTE: Removal steps in this procedure may contain installation details.

CAUTION: The following step(s) applies to: All vehicles

Disconnect the battery ground cable.
Refer to: Battery and Charging System article (General Information, Specifications).
Refer to: ENGINE COVER - V6 S/C 3.0L PETROL (G1267472) .
Refer to: ENGINE COVER - V8 S/C 5.0L PETROL (G1267472) .
Refer to: COWL VENT SCREEN .
The following step(s) applies to: Vehicles with petrol engine

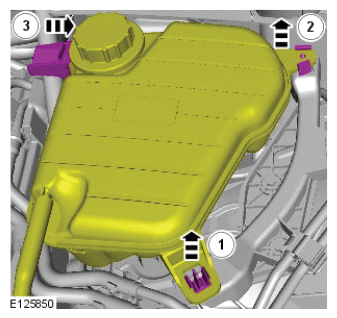

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

The following step(s) applies to: All vehicles

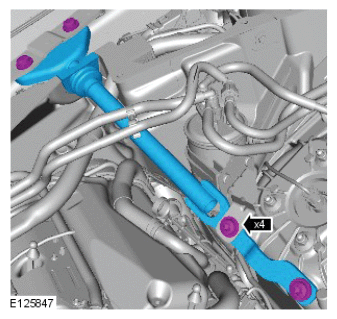

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque: 55 Nm

The following step(s) applies to: Vehicles with 3.0L diesel engine

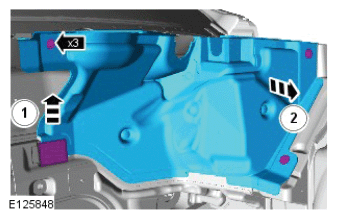

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque: 10 Nm

The following step(s) applies to: Right-hand drive vehicles
Refer to: LEFT PEDESTRIAN PROTECTION HOOD ACTUATOR .

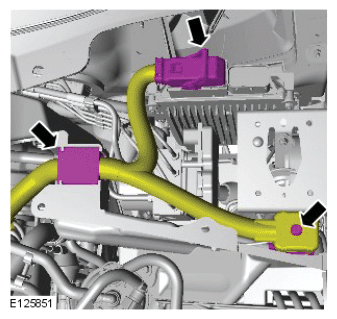

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque: 7 Nm

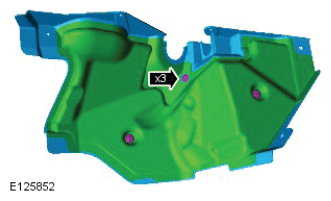

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque: 8 Nm

The following step(s) applies to: All vehicles

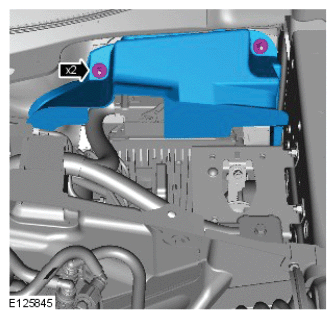

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque: 7 Nm
NOTE: Do not disassemble further if the component is removed for access only.

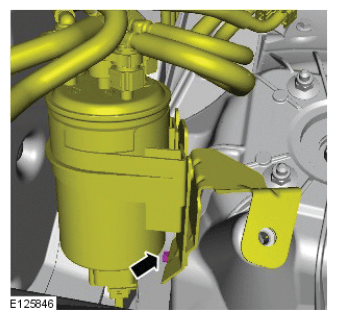

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
