Secondary Bulkhead Left Panel (G1267456): Installation

WARNING: This page is about a different car, the 2019 Jaguar XJ. However, it is still accessible from the selected car via links, so may be relevant.

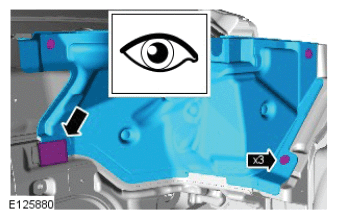

  1. CAUTION: Make sure that the clip is correctly located.
    G12532212Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    To install, reverse the removal procedure.
