Radiator Splash Shield (G1267454): Removal

WARNING: This page is about a different car, the 2019 Jaguar XJ. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may contain installation details.
  1. WARNING: Make sure to support the vehicle with axle stands.

    Raise and support the vehicle.

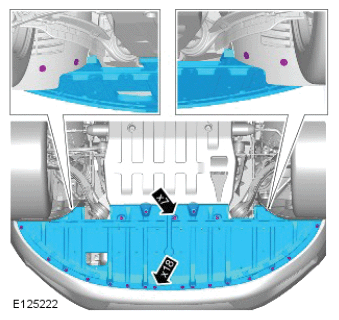

  2. G12532203Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Torque:  7 Nm
