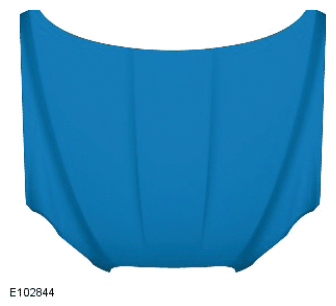

Hood (G1276190): Removal

The following step(s) applies to: All vehicles

1. NOTE:

   • The hood is manufactured from aluminum.
   • The hood is serviced as a separate bolt-on panel.

   Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

2. WARNING: The hood and its associated components form part of the pedestrian protection system, it is essential that any repair or replacement operations do not affect the safe working of the system.

   Refer to: *** Pedestrian Protection System article (Description and Operation).

3. Refer to: Health and Safety Precautions article (General Information, Description and Operation).

   Refer to: BODY REPAIRS .

   Refer to: CORROSION PROTECTION .

4. CAUTION: Make sure to protect the paintwork.

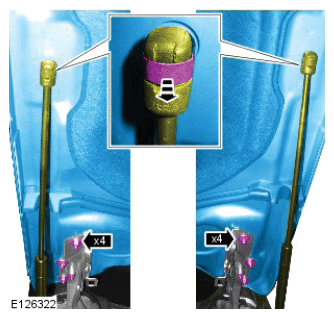

   NOTE: This step requires the aid of another technician.

   Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

5. NOTE: Do not disassemble further if the component is removed for access only.

   Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

6. NOTE: Some variation in the illustrations may occur, but the essential information is always correct.

   Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

7. Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

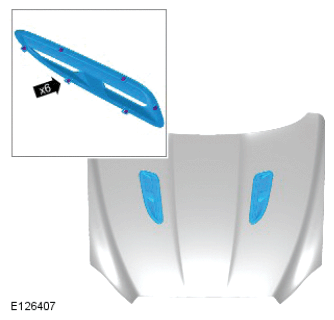

   The following step(s) applies to: Vehicles with supercharger

8. CAUTION: Make sure to protect the paintwork.

   Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

   The following step(s) applies to: All vehicles

9. Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
