Hood (G1276190): Installation

WARNING: This page is about a different car, the 2019 Jaguar XJ. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:
- This step requires the aid of another technician.
- If the hood hinges are deformed as a result of the pedestrian protection system deployment, they will need to be replaced.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Offer up the panel and loosely install the hood hinge retaining nuts.
Check alignment, if correct, proceed to next step, if not, rectify and recheck before proceeding.
CAUTION: Make sure to protect the paintwork.

NOTE: This step requires the aid of another technician.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

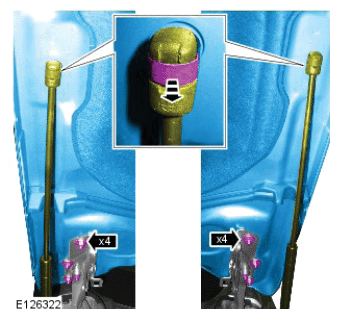

Torque: 17 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

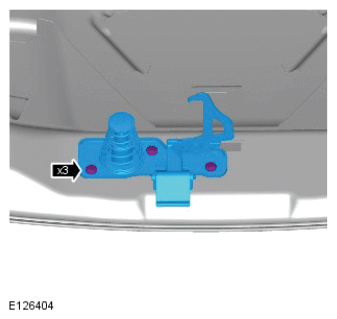

Loosely install both hood strikers.
Gently close the hood so that the strikers are aligned to the latches.
Check alignment, if correct, proceed to next step, if not, rectify and recheck before proceeding.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

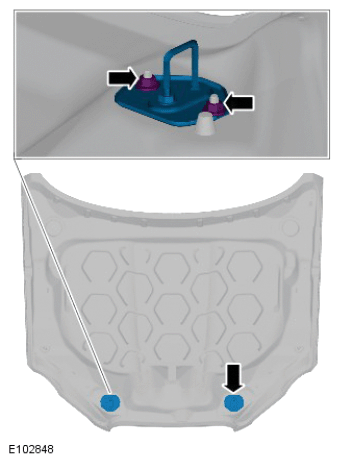

Torque: 11 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque: 9 Nm
