Fender Splash Shield (G1267452): Removal

WARNING: This page is about a different car, the 2019 Jaguar XJ. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may contain installation details.
  1. WARNING: Make sure to support the vehicle with axle stands.

    Raise and support the vehicle.

  2. Refer to: *** Wheel and Tire article (Removal and Installation).

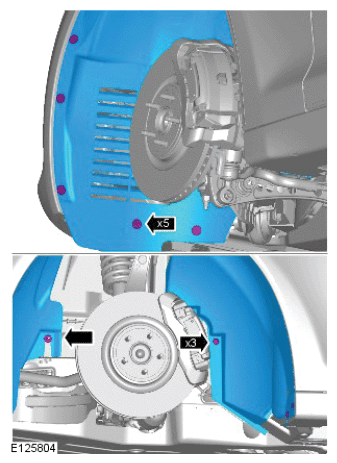

  3. G12532188Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
