Engine UNDERSHIELD (G1267449): Removal
WARNING: This page is about a different car, the 2019 Jaguar XJ. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.
-
WARNING:
Make sure to support the vehicle with axle stands.
Raise and support the vehicle.
-

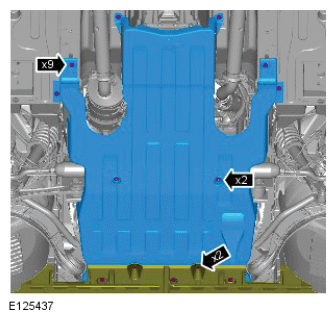

NOTE:
Note the fitted position of the washers.
 Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
|
Torque:
7 Nm
