Cowl Vent Screen (G1267450): Removal

WARNING: This page is about a different car, the 2019 Jaguar XJ. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Always protect paintwork and glass when removing exterior components.

NOTE: Removal steps in this procedure may contain installation details.

For additional information, refer to: WINDSHIELD WIPER PIVOT ARM .
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
CAUTION:

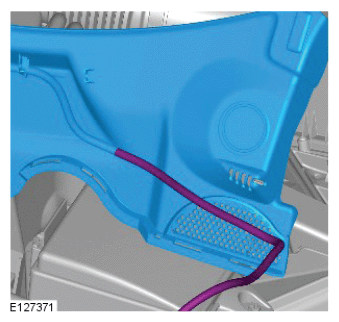

- Detach the rubber end caps from the leafscreen by releasing the velcro.
- Make sure that distortion to the end caps is kept to a minimum.

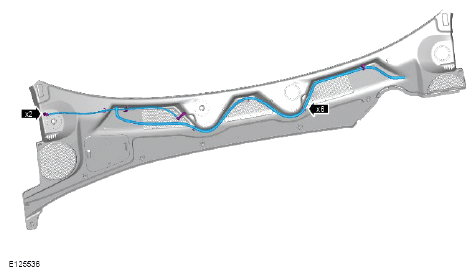

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

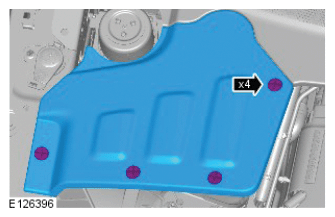

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
NOTE: Do not disassemble further if the component is removed for access only.

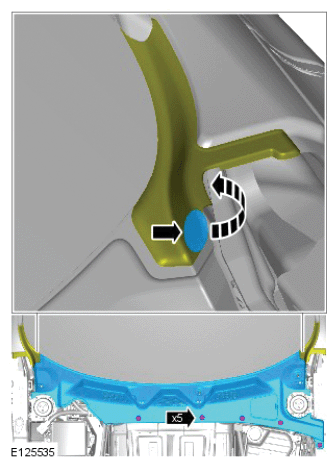

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
