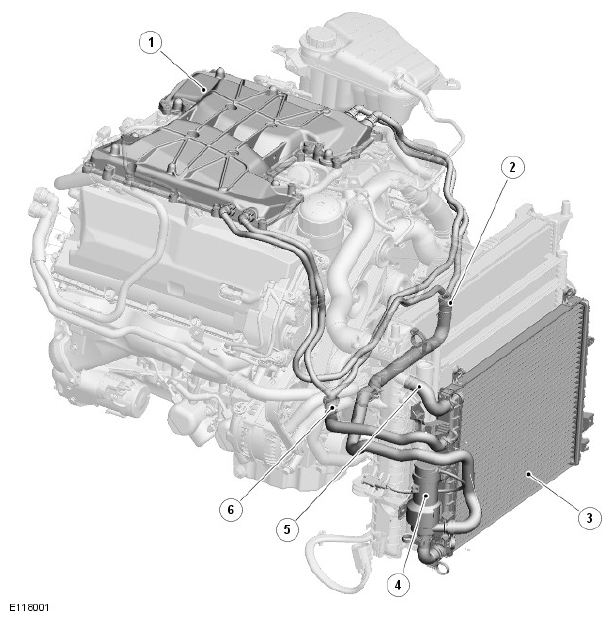

Component Location

G11287883Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
ITEM DESCRIPTION
1 Intake manifold assemblies
2 Supply hoses to charge air coolers
3 Charge air radiator
4 Charge air coolant pump
5 Engine cooling system connecting hose
6 Return hoses from charge air coolers
