Cooling Module (G1269158): Removal

NOTE:

Removal steps in this procedure may contain installation details.
Some variation in the illustrations may occur, but the essential information is always correct.

WARNING: Make sure to support the vehicle with axle stands.

Raise and support the vehicle.
Refer to: AIR CONDITIONING SYSTEM RECOVERY, EVACUATION AND CHARGING
Refer to: COOLING SYSTEM PARTIAL DRAINING AND VACUUM FILLING (G1816935)
Refer to: LEFT AIR CLEANER (G1271879)
Refer to: RIGHT AIR CLEANER (G1271880)

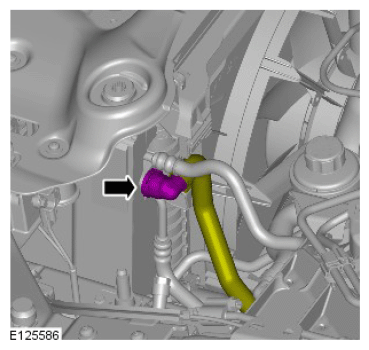

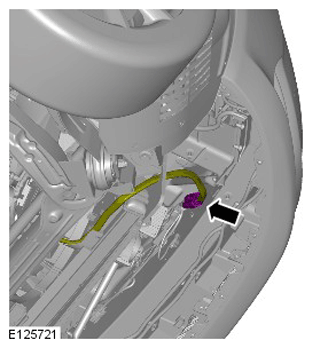

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

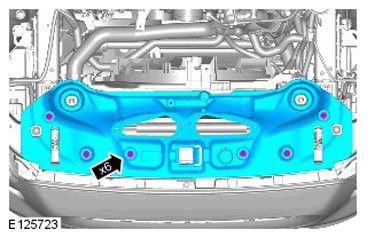

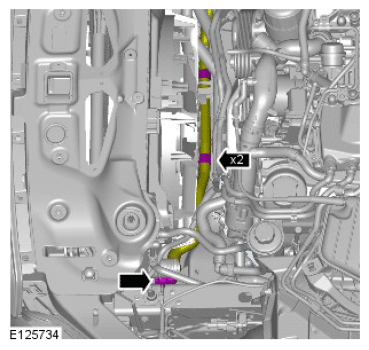

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

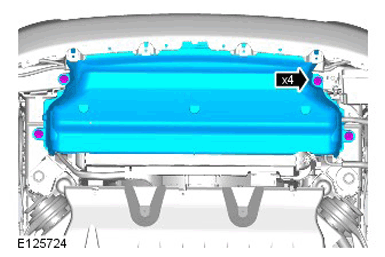

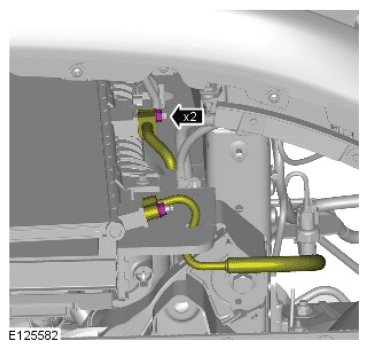

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

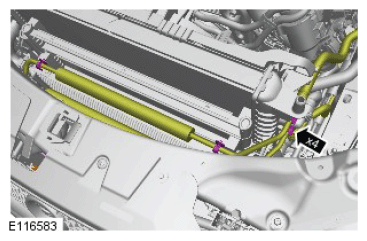

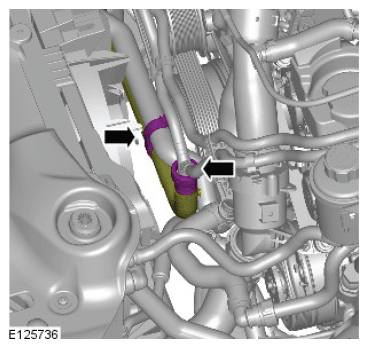

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
CAUTION: Be prepared to collect escaping coolant.

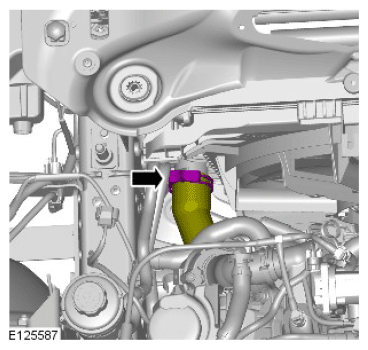

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

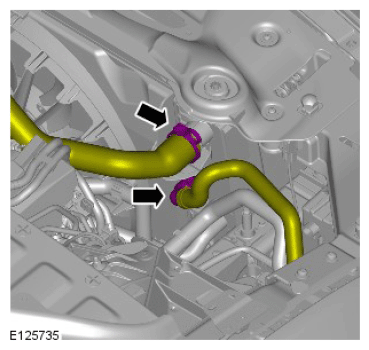

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

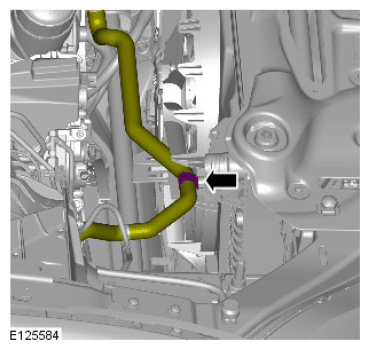

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

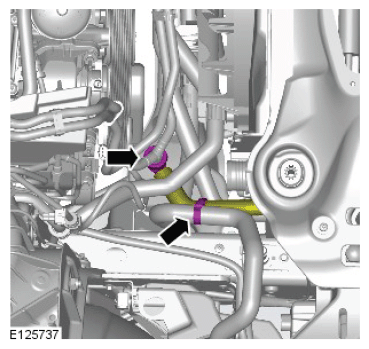

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
NOTE:
- Remove and discard the O-rings.
- Install new O-ring seals.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Renew Part: Air conditioning pipes to condenser O-ring seals Quantity: 1 .

Torque : 8 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
NOTE: Some variation in the illustrations may occur, but the essential information is always correct.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque : 9 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
