Engine Block Heater

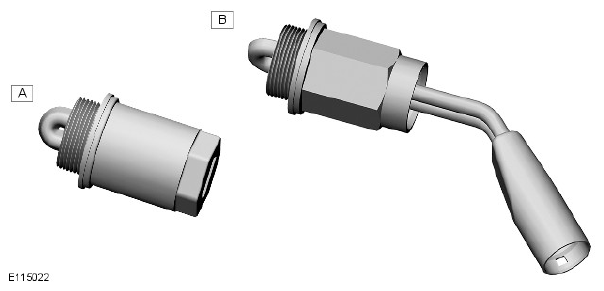

G11287762Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
ITEM DESCRIPTION
A 110 V AC version
B 240 V AC version

For vehicle markets subject to very cold climatic conditions, an engine block heater is installed in place of the cylinder block drain plug. The engine block heater is either a 110 V AC (Alternating Current) or 240 V AC electric heater element (depending on the market), which can be connected to a domestic power supply via a connector in the left side grill of the front bumper.
