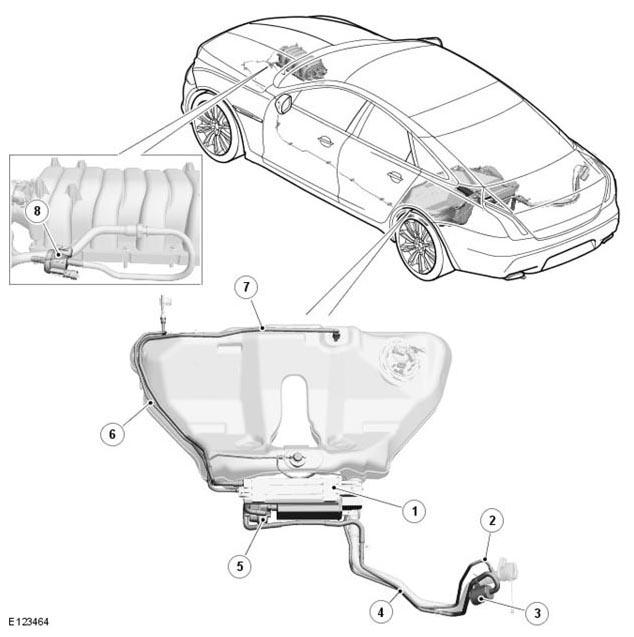

Component Location - NAS
| ITEM | DESCRIPTION |
|---|---|
|
NOTE:
System on naturally aspirated vehicle shown, system on supercharger vehicle similar.
|
|
| 1 | Evaporative emissions canister |
| 2 | Vapor pipe (filler head communication) - fuel tank to filler pipe |
| 3 | Diagnostic Module Tank Leakage (DMTL) filter |
| 4 | Atmospheric vent pipe - Diagnostic Module Tank Leakage (DMTL) pump to filter |
| 5 | Diagnostic Module Tank Leakage (DMTL) pump |
| 6 | Vapor pipe - Evaporative emissions canister to Evaporative emissions canister purge valve |
| 7 | Vapor pipe - fuel tank to Evaporative emissions canister |
| 8 | Evaporative emissions canister purge valve |
