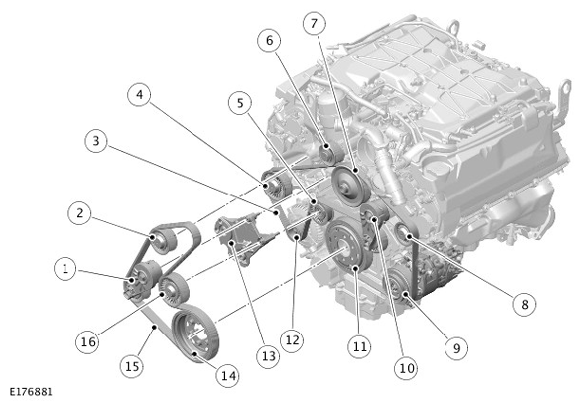

Component Location
| ITEM | DESCRIPTION |
|---|---|
| 1 | Belt tensioner |
| 2 | Idler pulley |
| 3 | Primary drive belt |
| 4 | Idler pulley |
| 5 | Idler pulley |
| 6 | Supercharger drive pulley |
| 7 | Coolant pump |
| 8 | Idler pulley |
| 9 | Air Conditioning (A/C) compressor |
| 10 | Belt tensioner |
| 11 | Crankshaft pulley and vibration damper assembly |
| 12 | Generator pulley |
| 13 | Idler pulley and secondary drive belt tensioner bracket |
| 14 | Crankshaft pulley and vibration damper assembly |
| 15 | Secondary drive belt |
| 16 | Idler pulley |
