Parking Brake Module : Removal

NOTE: Removal steps in this procedure may contain installation details.
  1. For additional information, Refer to: STARTUP BATTERY DISCONNECT AND CONNECT
  2. For additional information, Refer to: RIGHT LOADSPACE TRIM PANEL

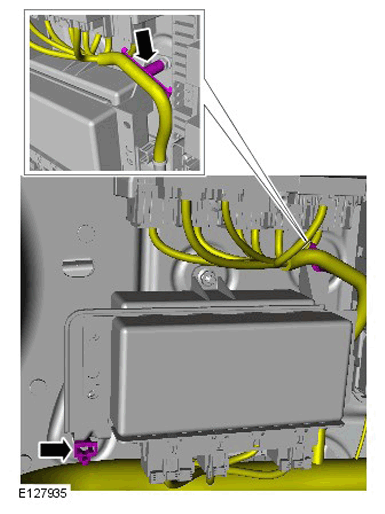

  3. G11284505Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

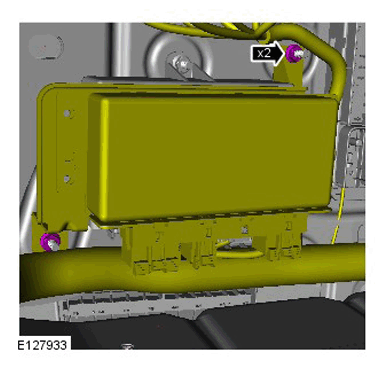

  4. G11284506Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    TORQUE: 8 Nm

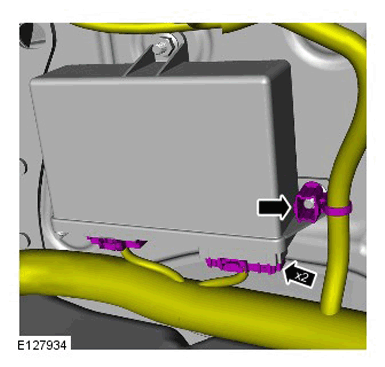

  5. G11284507Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

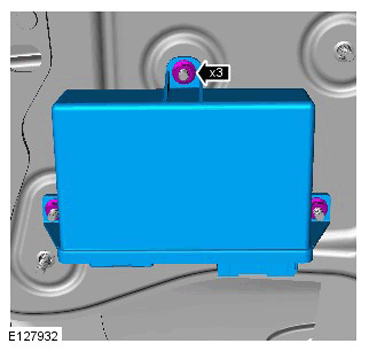

  6. G11284508Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    TORQUE: 4 Nm
