Electric Park Brake Release When The Vehicle Has No Electrical Power : Check

WARNING: Make sure that vehicle wheel chocks are used.

NOTE:

To perform in the event that the vehicle has no electrical power.
This procedure must be completed to the components on both sides of the vehicle.
This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

Raise and support the vehicle on a suitable 2 post lift.
Refer to: LIFTING
Remove both rear wheels and tires.
Refer to: WHEEL AND TIRE
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

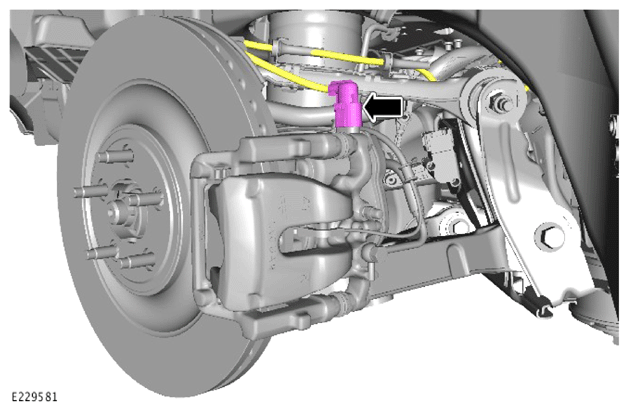

Disconnect the park brake actuator.
NOTE: Only perform the following step(s) if a new component is to be installed.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Remove the EPB actuator.
- Remove and discard the seal.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

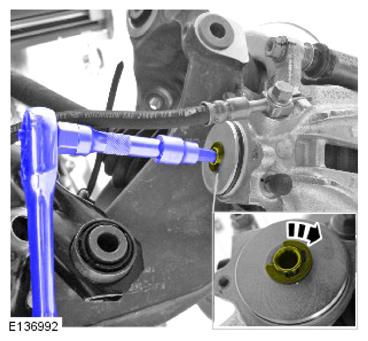

Using a suitable tool, rotate the piston until the parking brake is released.
