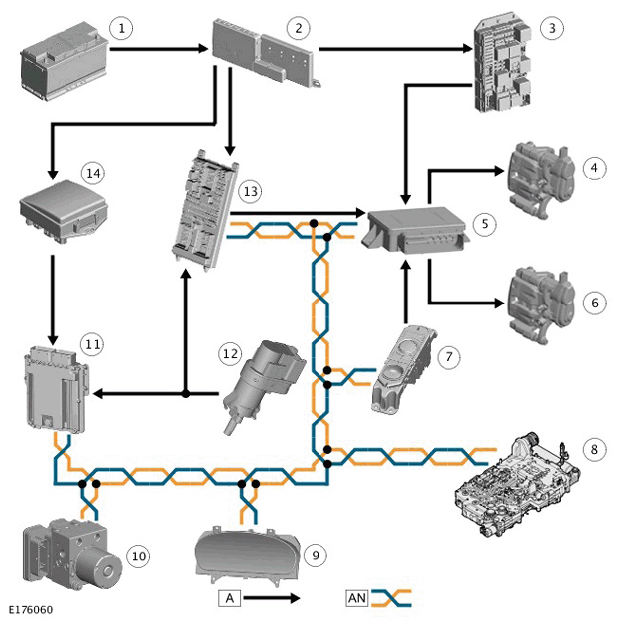

Control Diagram
NOTE:
A
= Hardwired; AN
= HS (High Speed) CAN (Controller Area Network) powertrain systems bus.
| ITEM | DESCRIPTION |
|---|---|
| 1 | Battery |
| 2 | Battery Junction Box (BJB) |
| 3 | Rear Junction Box (RJB) |
| 4 | Right Electric Park Brake (EPB) actuator |
| 5 | Electric Park Brake Control Module (EPBCM) |
| 6 | Left Electric Park Brake (EPB) actuator |
| 7 | Transmission Control Switch (TCS) with Electric Park Brake (EPB) switch |
| 8 | Transmission Control Module (TCM) |
| 9 | Instrument Cluster (IC) |
| 10 | Anti-lock Brake System (ABS) control module |
| 11 | Engine Control Module (ECM) |
| 12 | Brake pedal switch |
| 13 | Central Junction Box (CJB) |
| 14 | Engine Junction Box (EJB) |
