Brake Pads - Vehicles With: Standard Brakes : Installation

WARNING: Do not use compressed air to clean brake components. Dust from friction materials can be harmful if inhaled.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

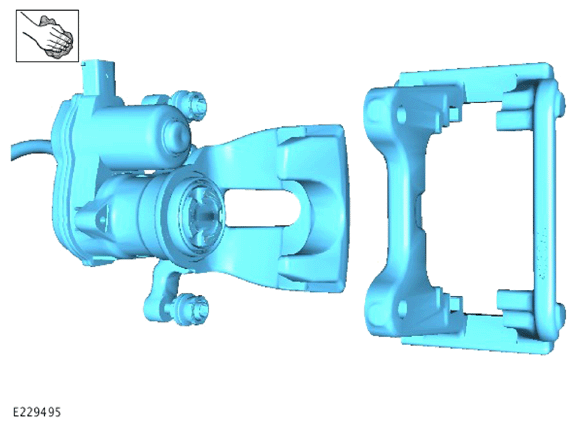

Clean the brake caliper housing and anchor plate using brake cleaning fluid.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

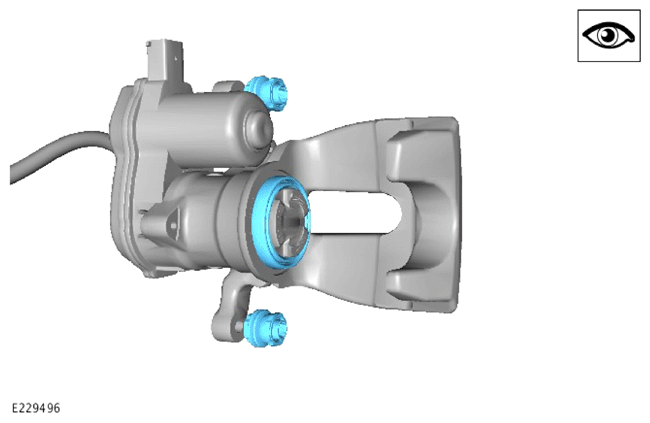

Inspect the brake caliper piston and slide pin seals for damage.
NOTE: Remove the cap from the brake fluid reservoir.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

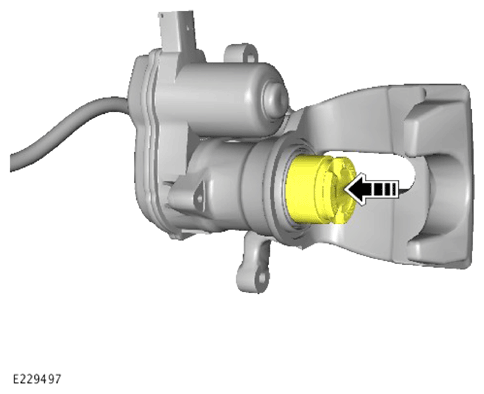

Using a piston retraction tool, push the piston into the brake caliper housing.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Install the brake pads.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Install the brake caliper.

Torque : 35 Nm
NOTE: Right side only.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Install the brake pad wear sensor.
- Connect the Electronic Park Brake (EPB).
Install the wheel and tire.
Refer to: WHEEL AND TIRE
Depress the brake pedal several times, check the fluid level in the brake fluid reservoir and top-up with brake fluid if necessary.
Using the Jaguar Land Rover approved diagnostic equipment, Calibrate the EPB.
General Equipment : Jaguar Land Rover approved diagnostic equipment
NOTE: This step is only required if Jaguar Land Rover approved diagnostic equipment is not available.

Deactivate the service mode function of the EPB.

Refer to: ELECTRIC PARK BRAKE SERVICE MODE ACTIVATION AND DEACTIVATION
