Brake Disc - Vehicles With: Standard Brakes : Installation

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

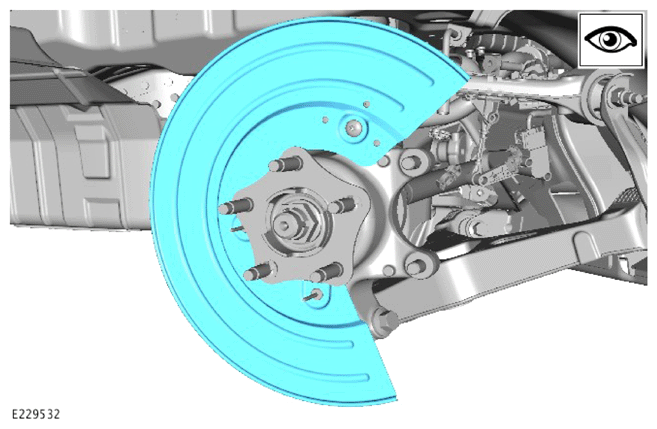

Clean and inspect the brake disc shield.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

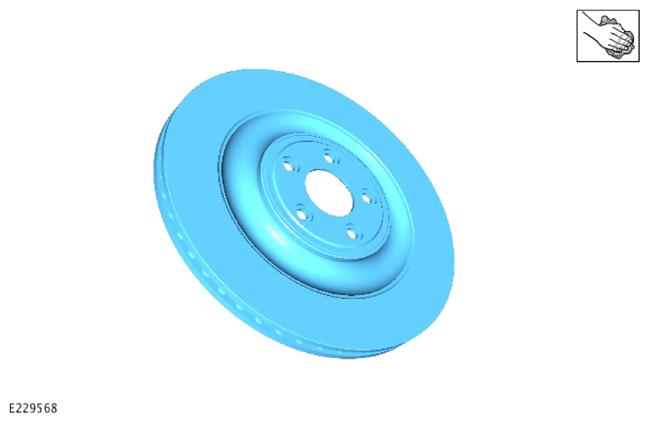

Clean the brake disc using brake cleaning fluid.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

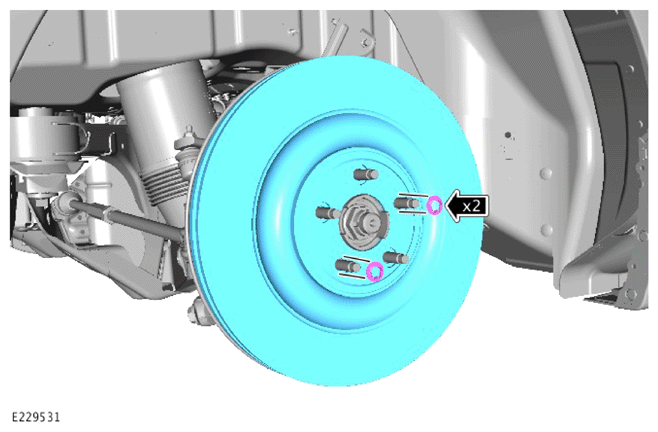

- Install the brake disc.
- Install the 2 retaining clips.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

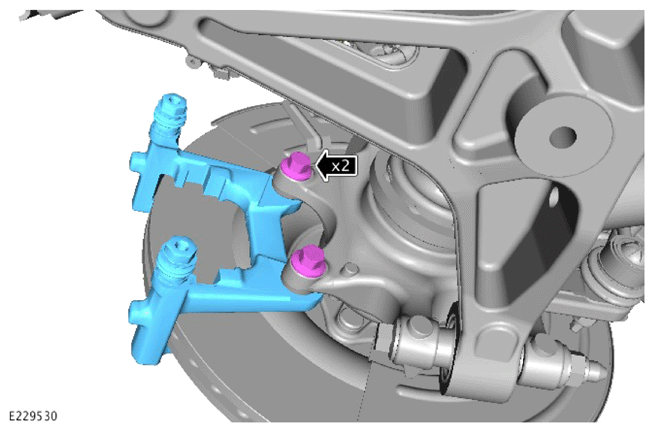

- Install the brake caliper carrier.
- Install 2 new retaining bolts.
  Renew Part: Brake caliper carrier bolt(s) Quantity: 2 .

  Torque : 115 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

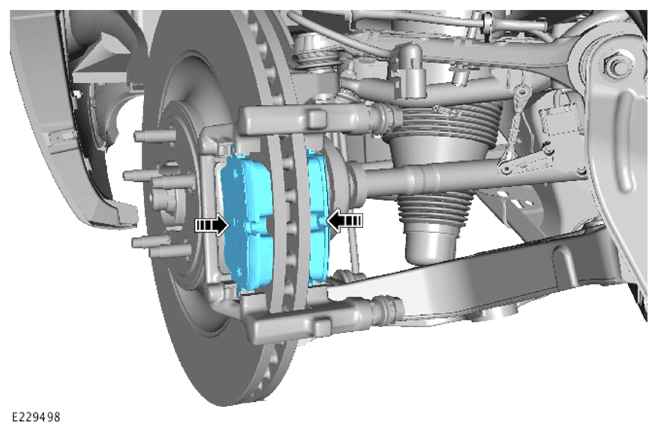

Install the brake pads.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

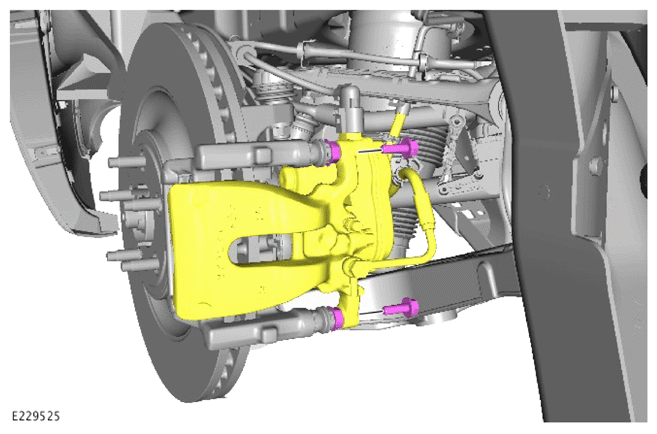

Install the brake caliper.

Torque : 35 Nm
Right side only.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

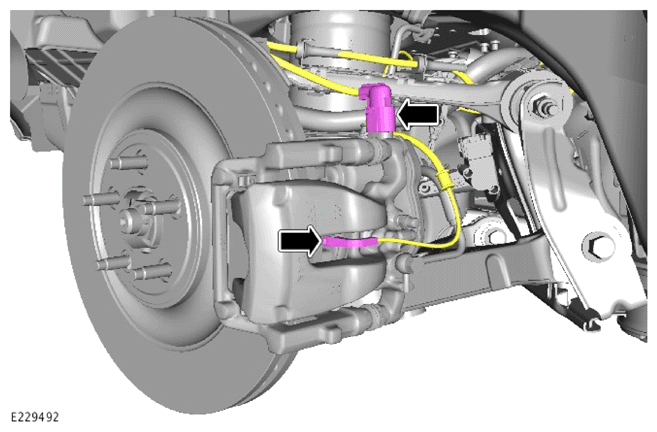

- Install the brake pad wear sensor.
- Connect the EPB.
Install the wheel and tire.
Refer to: WHEEL AND TIRE
Press the brake pedal several times, check the fluid level in the brake fluid reservoir and top-up with brake fluid if necessary.
Using the Jaguar Land Rover approved diagnostic equipment, calibrate the EPB.
General Equipment : Jaguar Land Rover approved diagnostic equipment
NOTE: This step is only required if Jaguar Land Rover approved diagnostic equipment is not available.

Deactivate the service mode function of the EPB.

Refer to: ELECTRIC PARK BRAKE SERVICE MODE ACTIVATION AND DEACTIVATION
