Brake Disc - Vehicles With: High Performance Brakes : Removal

CAUTION: Brake discs must be renewed in pairs.

NOTE: Removal steps in this procedure may contain installation details.

WARNING: Do not work on or under a vehicle supported only by a jack. Always support the vehicle on safety stands.

Raise and support the vehicle.
Refer to: BRAKE PADS - VEHICLES WITH: HIGH PERFORMANCE BRAKES
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

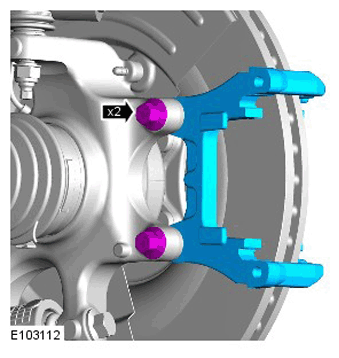

- Remove and discard the 2 bolts.
  Renew Part: Brake caliper carrier bolt(s) Quantity: 2 .

  Torque : 103 Nm
NOTE: Make sure that all the component mating faces are clean.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Remove the 2 clips.
- Repeat the above procedure on the opposite side.
