Brake Fluid Reservoir : Removal

NOTE: Removal steps in this procedure may contain installation details.

WARNING: Make sure to support the vehicle with axle stands.

Raise and support the vehicle.
For additional information, Refer to: COWL VENT SCREEN
WARNING: Do not allow dirt or foreign liquids to enter the reservoir. Use only new brake fluid of the correct specification from airtight containers. Do not mix brands of brake fluid as they may not be compatible.

CAUTION: If brake fluid is spilt on the paintwork, the affected area must be immediately washed down with cold water.

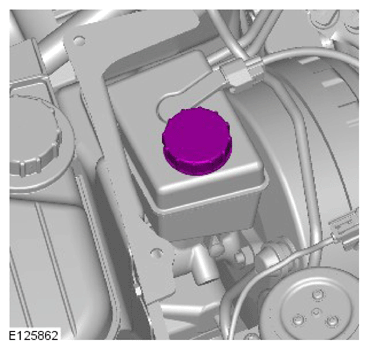

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Using a suitable suction device drain the brake fluid reservoir.
- Clean the area around the reservoir filler cap, remove the cap.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

TORQUE: 4 Nm
CAUTION: Make sure that the area around the component is clean and free of foreign material.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Install the new seals.
