Brake System Bleeding (G1269545)

The following step(s) applies to:

All vehicles

1. WARNING: Make sure to support the vehicle with axle stands.

   Raise and support the vehicle.

2. Check that the brake fluid lines are secure and that there are no signs of a brake fluid leak. If a brake fluid leak is detected, investigate and rectify the cause of the leak before bleeding the brakes.

3. Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

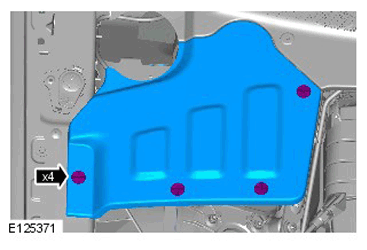

   Remove the brake master cylinder cover.

   • Remove the 4 clips.
4. WARNING: Do not allow dirt or foreign liquids to enter the reservoir. Use only new brake fluid of the correct specification from airtight containers. Do not mix brands of brake fluid as they may not be compatible.
   CAUTION: Brake fluid will damage paint finished surfaces. If spilled, immediately remove the fluid and clean the area with water.

   Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

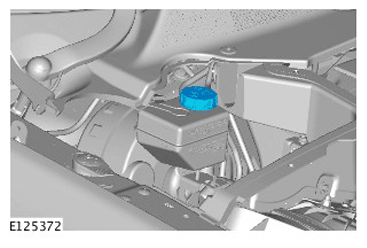

   Remove the brake fluid reservoir cap.

5. Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

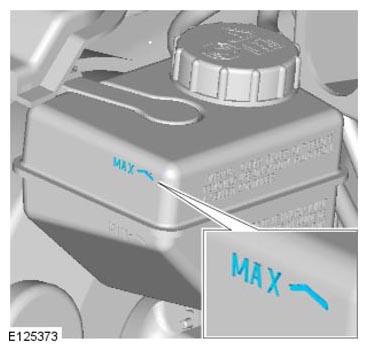

   Fill the brake fluid reservoir to the MAX mark.

   The following step(s) applies to:

   Left-hand drive vehicles

6. Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

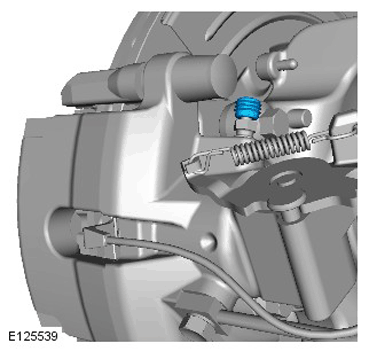

   Install the bleed tube to the right hand rear brake caliper bleed screw and immerse the free end of the bleed tube in a bleed jar, containing a small quantity of approved brake fluid.

   • Remove the bleed screw covers.

   The following step(s) applies to:

   Right-hand drive vehicles

7. Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

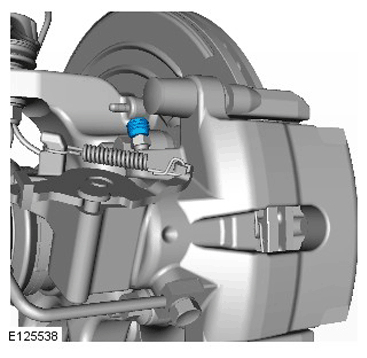

   Install the bleed tube to the left hand rear brake caliper bleed screw and immerse the free end of the bleed tube in a bleed jar, containing a small quantity of approved brake fluid.

   • Remove the bleed screw covers.

   The following step(s) applies to:

   All vehicles

8. Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

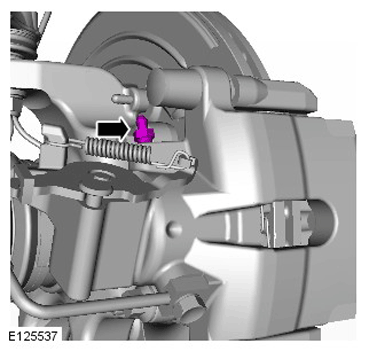

   Loosen the bleed screw by one-half to three-quarters of a turn.

9. CAUTION: The brake fluid reservoir must remain full with new, clean brake fluid at all times during bleeding.
   NOTE: If the bleed tube used, does not have a one way valve the bleed screw will need to be closed before the brake pedal is returned to the rest position. Then opened again and the procedure repeated for each pedal application.

   With assistance, depress the brake pedal steadily through its full stroke and allow it to return to the rest position. Repeat the procedure until brake fluid, clean and air-free flows into the bleed jar.

10. CAUTION: Make sure the bleed screw cap is installed after bleeding. This will prevent corrosion to the bleed screw.

    With the brake pedal fully depressed, tighten the bleed screw.

    • Tighten the rear bleed screw to 15 Nm (11 Ib.ft).
    • Tighten the front bleed screw to 15 Nm (11 Ib.ft).
11. Fill the brake fluid reservoir to the MAX mark.

    The following step(s) applies to:  Left-hand drive vehicles

12. WARNING: Braking efficiency may be seriously impaired if an incorrect bleed sequence is used.

    Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

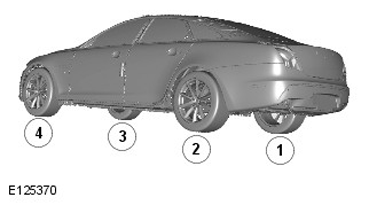

    Repeat the brake bleeding procedure for each brake caliper, following the sequence below.

    The following step(s) applies to:

    Right-hand drive vehicles

13. WARNING: Braking efficiency may be seriously impaired if an incorrect bleed sequence is used.

    Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

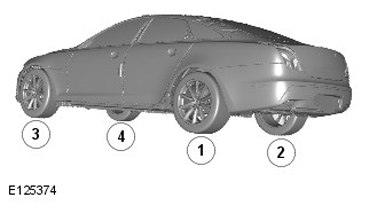

    Repeat the brake bleeding procedure for each brake caliper, following the sequence below.

    The following step(s) applies to:

    All vehicles

14. Fill the brake fluid reservoir to the MAX mark.
15. Apply the brakes and check for leaks.
16. Install the brake fluid reservoir cap.
17. Install the brake master cylinder cover.
    • Carefully secure the clips.
18. • On completion, road test the vehicle and check the brake pedal operation. The pedal travel should be short with a firm feel.
