Instrument Panel Upper Section (G1269740): Removal

WARNING:

To avoid accidental deployment, the restraints control module backup power supply must be depleted. Wait at least one minute after disconnecting the battery ground cable(s) before commencing any repair or adjustment to the supplemental restraint system (SRS), or any component(s) adjacent to the SRS sensors. Failure to follow these instructions may result in personal injury.
Always wear safety glasses when working on an air bag equipped vehicle and when handling an air bag module. Failure to follow this instruction may result in personal injury.
To minimize the possibility of premature deployment, do not use radio key code savers when working on the supplemental restraint system. Failure to follow this instruction may result in personal injury.
To minimize the possibility of injury in the event of premature deployment, always carry a live air bag module with the bag and trim cover pointed away from the body. Failure to follow this instruction may result in personal injury.
To minimize the possibility of premature deployment, live air bag modules must only be placed on work benches which have been ground bonded and with the trim cover facing up. Failure to follow these instructions may result in personal injury.
Never probe the electrical connectors of air bag modules or any other supplemental restraint system component. Failure to follow this instruction may result in personal injury.
Painting over the driver air bag module trim cover or instrument panel could lead to deterioration of the trim cover and air bags. Do not for any reason attempt to paint discolored or damaged air bag module trim covers or instrument panel. Install a new component. Failure to follow this instruction may result in personal injury.

NOTE: Removal steps in this procedure may contain installation details.

Refer to: STARTUP BATTERY DISCONNECT AND CONNECT
Refer to: STEERING WHEEL
NOTE: The procedure must be carried out on both sides.

Refer to: A-PILLAR TRIM PANEL
Refer to: GLOVE COMPARTMENT
Refer to: INSTRUMENT CLUSTER
Refer to: INSTRUMENT PANEL LOWER SECTION
Fully extend the steering column for access.
NOTE: The procedure must be carried out on both sides.

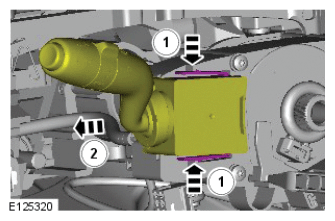

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
NOTE: The procedure must be carried out on both sides.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque : 2.5 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque : 2.5 Nm
CAUTION:
- Before inserting the special tool, make sure that the register is fully open.
- Care must be taken to avoid damage to the internal components of the center registers.
- Repeat for the other centre register secured to the instrument panel.
- To install the register, align the securing clips and push the register into the housing until firmly secured in it's seated position.
- During removal, care must be taken not to damage the instrument panel covering with the register clips.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Special Tool(s): JLR-412-147
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque : 2.5 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque : 2.5 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
NOTE: The procedure must be carried out on both sides.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque : 9 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque : 9 Nm
NOTE: The procedure must be carried out on both sides.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque : 9 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque : 9 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque : 4 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque : 4 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque : 9 Nm
NOTE: Some variation in the illustrations may occur, but the essential information is always correct.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque : 4 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque : 2.5 Nm
CAUTION: Note the fitted position of the component prior to removal.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
NOTE: Some variation in the illustrations may occur, but the essential information is always correct.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque : 9 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
CAUTION:
- Note the fitted position of the component prior to removal.
- Take extra care not to damage the edges of the component.
NOTE:
- This step requires the aid of another technician.
- LHD illustration shown, RHD is similar.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
NOTE: Do not disassemble further if the component is removed for access only.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque : 2.5 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque : 2.5 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque : 2.5 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
CAUTION: Note the fitted position of the component prior to removal.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
CAUTION:
- Care must be taken to avoid damage to the seal register and running surface.
- Repeat for each of the registers secured to the instrument panel.
- Before inserting the special tool, make sure that the register is fully open.
- To install the register, align the securing clips and push the register into the housing until firmly secured in it's seated position.
- During removal, care must be taken not to damage the instrument panel covering with the register clips.
NOTE: Some variation in the illustrations may occur, but the essential information is always correct.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Special Tool(s): JLR-412-147
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque : 2.5 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque : 4.5 Nm
NOTE: The procedure must be carried out on both sides.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque : 2.5 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque : 2.5 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque : 2.5 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque : 2.5 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
