Ignition Switch (G2218895): Removal

NOTE: This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.

Disconnect the startup battery ground cable.
Refer to: SPECIFICATIONS
NOTE: The steering wheel is shown removed for clarity.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the steering column upper trim panel.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the retaining screws.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the drivers footwell instrument trim panel.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the lower instrument trim panel.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

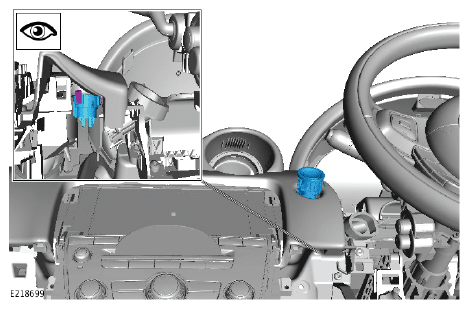

- Remove the ignition switch.
- Disconnect the electrical connector.
