Starter Motor : Removal

WARNING: This page is about a different variant/trim than selected.

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

Raise and support the vehicle on a suitable 2 post lift.
Refer to: LIFTING
Disconnect the startup battery ground cable.
Refer to: STARTUP BATTERY DISCONNECT AND CONNECT
Remove the catalytic converter.
Refer to: CATALYTIC CONVERTER - VEHICLES WITH: NAS SPECIFICATION
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

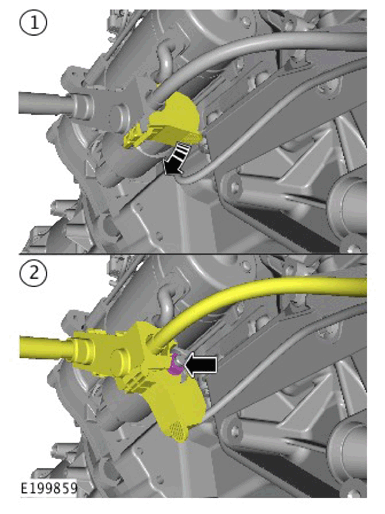

1. Release the cover.
2. Disconnect the startup battery positive cable.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

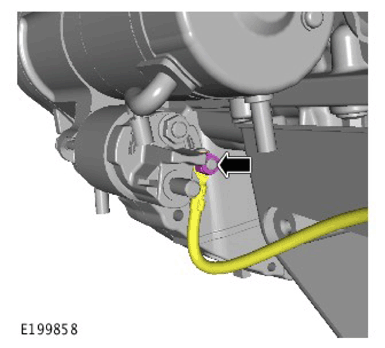

Disconnect the wiring harness.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

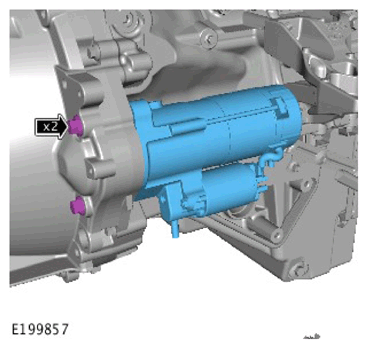

Remove the starter motor.
