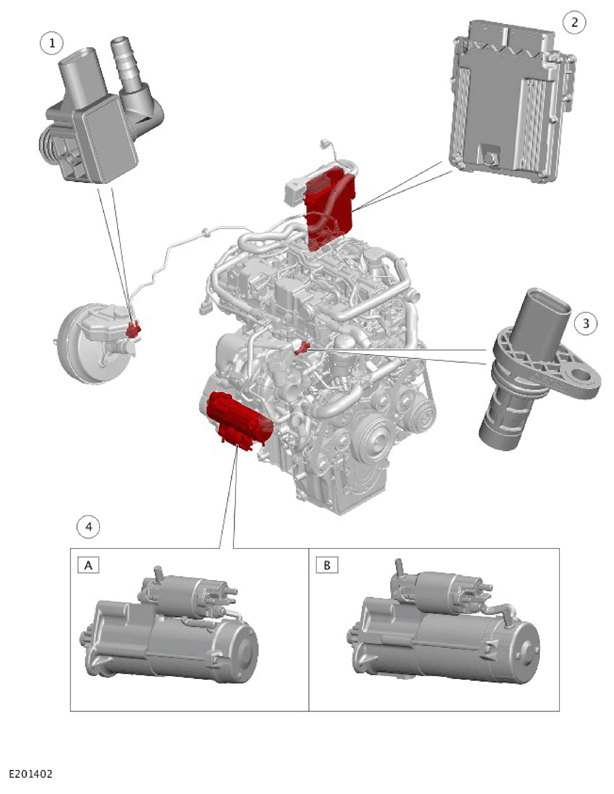

Component Location - 1 Of 2
WARNING: This page is about a different variant/trim than selected.
 Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
|
| ITEM |
DESCRIPTION |
| A |
Starter motor - Without auto stop/start system |
| B |
Starter motor - With auto stop/start system |
| 1 |
Brake vacuum sensor |
| 2 |
Powertrain Control Module (PCM) |
| 3 |
Crankshaft Position Sensor (CKP) |
| 4 |
Starter motor |
