Component Location

WARNING: This page is about a different variant/trim than selected.

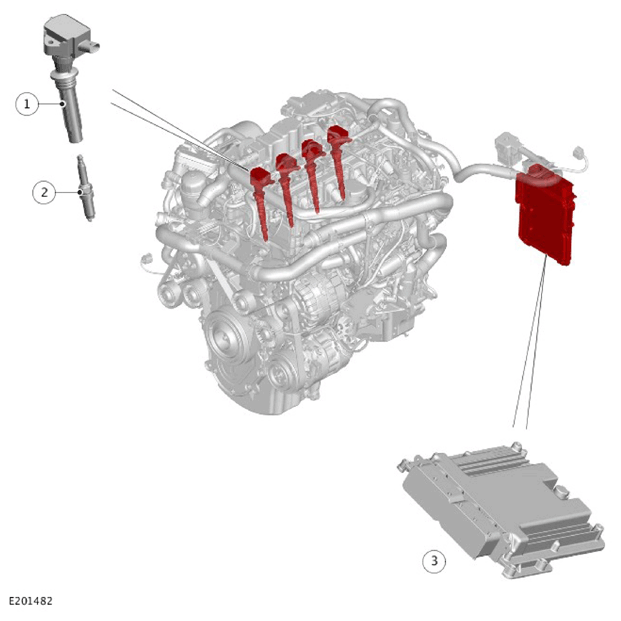

G11327956Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
ITEM DESCRIPTION
1 Ignition coil (4 off)
2 Spark plug (4 off)
3 Powertrain Control Module (PCM)
