Electric Cooling Fan And Shroud (G1817169): Removal

WARNING: This page is about a different variant/trim than selected.

WARNING: Cooling fans may continue to operate after the engine is turned off. They may also start to operate after the engine is turned off and continue operating for up to 10 minutes.

NOTE:

Some variation in the illustrations may occur, but the essential information is always correct.
Removal steps in this procedure may contain installation details.
Some components shown removed for clarity.

The following step(s) applies to:

All vehicles

WARNING: Make sure to support the vehicle with axle stands.

Raise and support the vehicle.
Refer to: STARTUP BATTERY DISCONNECT AND CONNECT
Refer to: CHARGE AIR COOLER
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque: 9 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

The following step(s) applies to:

Vehicles with automatic transmission
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

The following step(s) applies to:

All vehicles
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
CAUTION: Be prepared to collect escaping coolant.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque: 9 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque: 9 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
CAUTION: Protect the radiator during this operation.

NOTE: Do not disassemble further if the component is removed for access only.

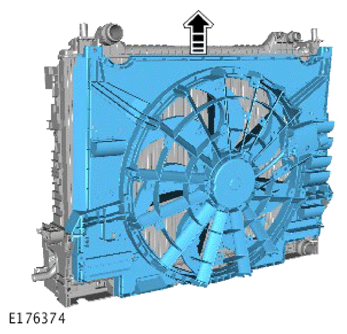

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
