Oil Rump (G1913834): Removal
WARNING: This page is about a different variant/trim than selected.
NOTE:
- Some illustrations may show the engine removed for clarity.
- Removal steps in this procedure may contain installation details.
- Some variation in the illustrations may occur, but the essential information is always correct.
-
Refer to: STARTUP BATTERY DISCONNECT AND CONNECT
-
WARNING: Make sure to support the vehicle with axle stands.
Raise and support the vehicle.
- Refer to: OIL PUMP CHAIN

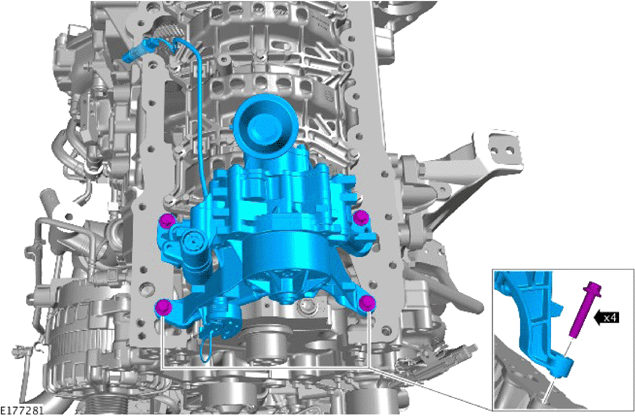

Torque : 25 Nm
-
NOTE: Do not disassemble further if the component is removed for access only.
Torque: 12 Nm
