Oil Pump Chain (G1867695): Removal

WARNING: This page is about a different variant/trim than selected.

NOTE:

Some illustrations may show the engine removed for clarity.
Removal steps in this procedure may contain installation details.
Some variation in the illustrations may occur, but the essential information is always correct.

The following step(s) applies to: All vehicles

Raise and support the vehicle on a suitable 2 post lift.
Refer to: LIFTING
Disconnect the startup battery ground cable.
Refer to: STARTUP BATTERY DISCONNECT AND CONNECT
Remove the oil pan.
Refer to: OIL PAN

The following step(s) applies to: Engines fitted with tensioner
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

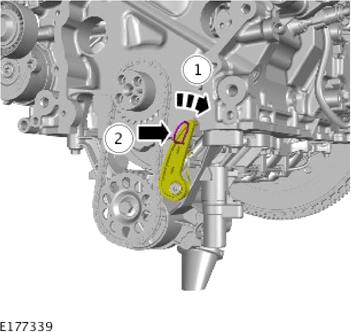

Set the oil pump chain tensioner in the service position and secure with a suitable locking tool.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

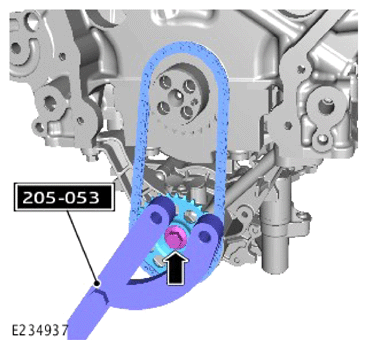

- Using the special tool to hold the oil pump sprocket, remove and discard the bolt.
  Special Tool(s): 205-053
- Remove the oil pump gear.
- Remove the oil pump chain.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

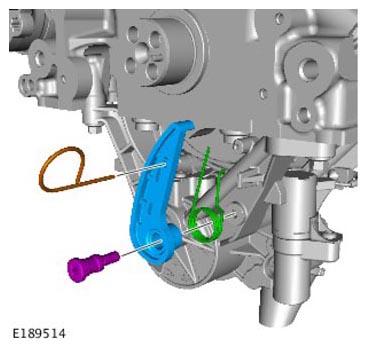

Remove and discard the oil pump chain tensioner assembly.

The following step(s) applies to: Engines fitted without tensioner
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Using the special tool to hold the oil pump sprocket, remove and discard the bolt.
  Special Tool(s): 205-053
- Remove the oil pump gear.
- Remove the oil pump chain.
