Flywheel (G1867848): Installation

WARNING: This page is about a different variant/trim than selected.

CAUTION: Under no circumstances should the flywheel retaining bolts be inserted into the crankshaft with the flywheel removed. Failure to follow this instruction will result in damage to the engine.

NOTE: Do not insert the bottoming tap more than the depth of the threaded holes (16 mm). Apply tape to the bottoming tap 16 mm from the end as a visual guide.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Using a suitable bottoming tap, clean out the threads.
- Using suitable brake cleaner, remove any foreign material from the threads.
WARNING: This step requires the aid of another technician.
CAUTION:
- Make sure that the mating faces are clean and free of foreign material.
- Make sure that new bolts are installed.
- Tighten the bolts in the sequence shown.

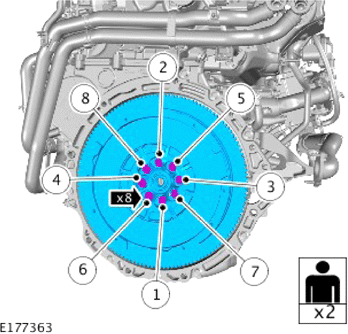

Fig 1: Flywheel Tightening Sequence
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Renew Part: Flywheel bolts Quantity: 1 .

Torque

Stage 1: 30 Nm

Stage 2: 120°
To install, reverse the removal procedure.
