Exhaust Valve Stem Seals (G2045635): Installation

WARNING: This page is about a different variant/trim than selected.

- Install new valve stem seals.
- Renew Part: Valve stem oil seals Quantity: 1 .
NOTE: Install the components to their original fitted positions.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

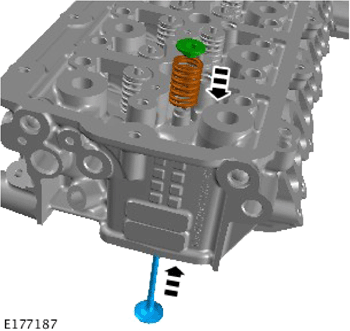

- Install the valve, spring and cap.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Using the special tool, compress the valve spring and install the collets.
- Repeat the process for the remaining 7 exhaust valves.
- Install the cylinder head.
  Refer to: CYLINDER HEAD
