Turbocharger Oil Supply Tube: Notes

WARNING: This page is about a different variant/trim than selected.
18.50.33 TURBOCHARGER OIL SUPPLY PIPE - RENEW 2000 CC, GTDI 2.60
G13967029Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
18.50.33 TURBOCHARGER OIL SUPPLY PIPE - RENEW 2000 CC, INGENIUM DIESEL, SINGLE TURBOCHARGER FITTED 0.50
G11345778Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
18.50.33 TURBOCHARGER OIL SUPPLY PIPE - RENEW 2000 CC, INGENIUM PETROL 0.40
G13888824Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

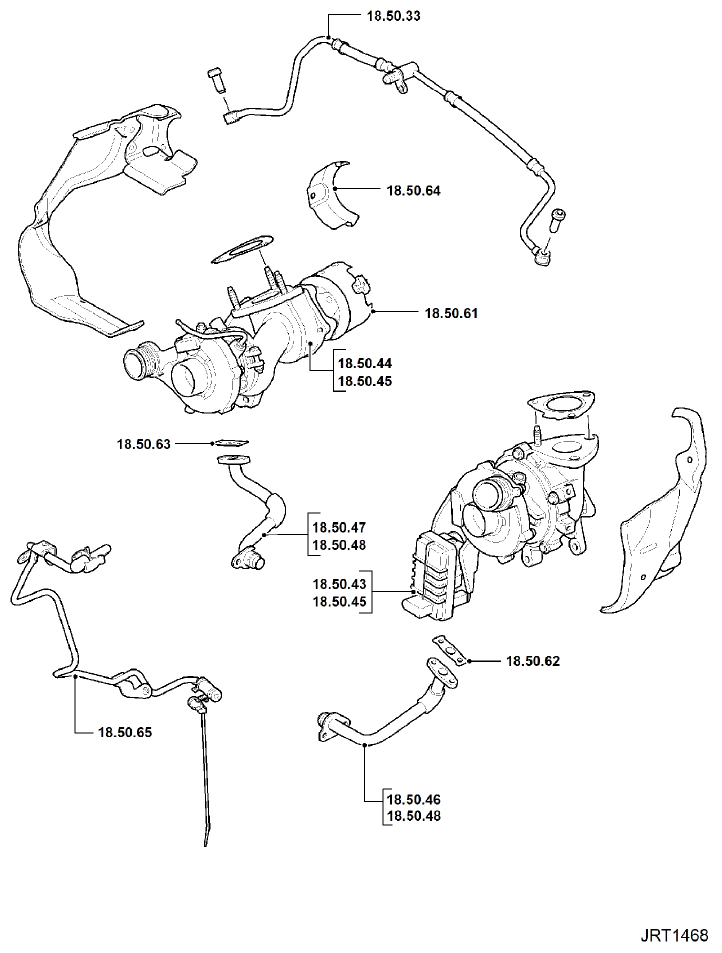

18.50.33 TURBOCHARGER OIL SUPPLY PIPE - RENEW 3000 CC, TDV6 5.40
G11351640Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
