Variable Camshaft Timing Actuator (G2320257): Removal

WARNING: This page is about a different variant/trim than selected.

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

Raise and support the vehicle on a suitable 2 post lift.
Refer to: LIFTING .
Disconnect the startup battery ground cable.
Refer to: STARTUP BATTERY DISCONNECT AND CONNECT .
Remove the hood.
Refer to: HOOD .
Remove the upper timing cover.
Refer to: UPPER TIMING COVER .
Remove the charge air cooler.
Refer to: CHARGE AIR COOLER .
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Release the 4 side retaining clips.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Release the 2 front clips.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the charge air cooler bracket.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

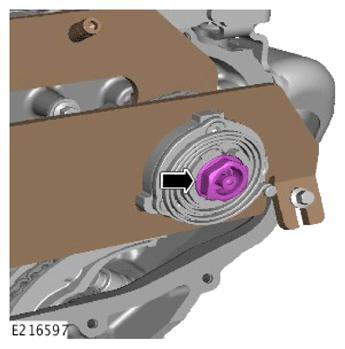

- Install the special tool JLR-303-1656 as illustrated.
  Special Tool(s): JLR-303-1656
- Use the special tool JLR-303-1656 to rotate the crankshaft until the timing marks align as illustrated.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Install the special tool as illustrated.

Special Tool(s): JLR-303-1635

Torque: 13 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Install the special tool as illustrated.

Special Tool(s): JLR-303-1636

Torque: 13 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Install the remaining components of the special tool.
  Special Tool(s): JLR-303-1630
- Using the special tool, lock the crankshaft into position.
  Special Tool(s): JLR-303-1630
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Loosen but do not fully remove the exhaust Variable Camshaft Timing (VCT) bolt.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove and discard the upper timing chain tensioner.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the special tool.

Special Tool(s): JLR-303-1636
CAUTION: Note the location of the VCT units prior to removal. Each VCT unit is matched to a specific camshaft.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Remove and discard the 2 VCT unit center bolts.
- Remove the 2 VCT units.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Remove and discard the 2 bolts.
- Remove and discard the timing chain guide.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Remove and discard the bolt.
- Remove and discard the upper timing chain guide.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

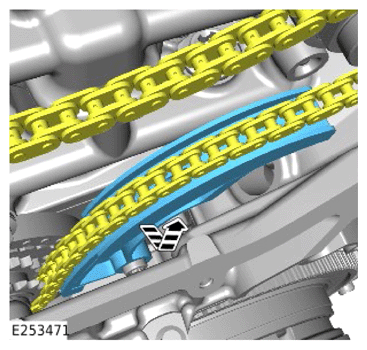

Remove and discard the upper timing chain guide.
