Upper Timing Chain (G2030609): Installation

WARNING: This page is about a different variant/trim than selected.

NOTE: Maintain tension on the chain to prevent the colored link from disengaging with its sprocket position.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Install the upper timing chain.
- Make sure that the colored link is aligned as illustrated.
CAUTION: Make sure that the upper timing chain does not come off the idler sprocket and stays in the correct position.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Install a new left upper timing chain guide.
  Renew Part: Upper timing chain guide Quantity: 1.
- Install and tighten the bolt.
  Renew Part: Left side timing chain guide bolt Quantity: 1.

  Torque: 25 Nm
CAUTION: Make sure that the upper timing chain does not come off the idler sprocket and stays in the correct position.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Install the intake camshaft VCT unit. Make sure that the correct VCT unit is installed as noted in the removal steps.
- Make sure that the camshaft pin is correctly seated in the VCT unit as illustrated.
- Install and tighten the new VCT unit center bolt.
  Renew Part: Variable camshaft timing actuator bolts Quantity: 1.

  Torque

  Stage 1: 10 Nm

  Stage 2: Loosen 90°
- Check if the highlighted link on the timing chain is aligned with the timing mark on the VCT unit as illustrated.
CAUTION: Make sure that the upper timing chain does not come off the idler sprocket and stays in the correct position.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Install a new upper timing chain tensioner arm.

Renew Part: Timing chain tensioner arm Quantity: 1.
CAUTION: Make sure that the upper timing chain does not come off the idler sprocket and stays in the correct position.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Install the exhaust camshaft VCT unit. Make sure that the correct VCT unit is installed as noted in the removal steps.
- Make sure that the camshaft pin is correctly seated in the VCT unit as illustrated.
- Install and tighten a new VCT unit center bolt.
  Renew Part: Variable camshaft timing actuator bolts Quantity: 1.

  Torque

  Stage 1: 10 Nm

  Stage 2: Loosen 90°

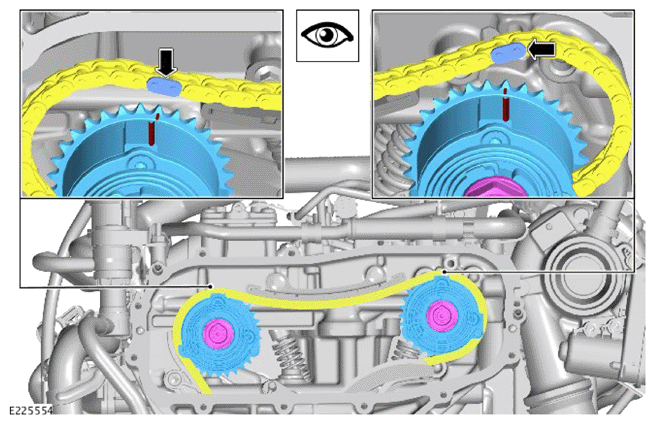

- Check if the highlighted link on the timing chain is aligned with the timing mark on the VCT unit as illustrated.
CAUTION: Make sure that the colored link on the timing chain is aligned with the groove on the VCT actuator as illustrated.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
CAUTION: Make sure that the upper timing chain does not come off the idler sprocket and stays in the correct position.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Install a new upper timing chain guide.
  Renew Part: Upper timing chain guide Quantity: 1.
- Install and tighten the 2 bolts.
  Renew Part: Upper timing chain upper guide bolt Quantity: 2.

  Torque: 11 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Install the special tool JLR-303-1636.
  Special Tool(s): JLR-303-1636
- Install and tighten the 2 special tool bolts.
  Torque: 13 Nm
CAUTION: Make sure that a new upper timing chain tensioner is installed.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Install and tighten the new timing chain tensioner.

Renew Part: Upper timing chain tensioner Quantity: 1.

Torque: 55 Nm
CAUTION:
- Do not directly touch the timing chain tensioner at this stage.
- Make sure the timing chain tensioner is fully deployed.

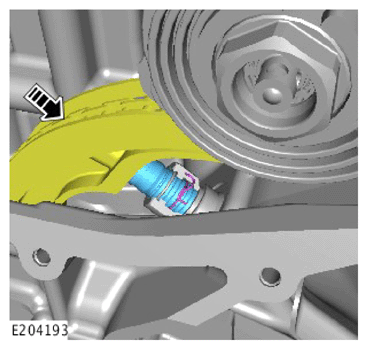

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

To correctly deploy the timing chain tensioner, push the timing chain guide against timing chain tensioner in the position illustrated.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Fully tighten the VCT bolts.
  Torque

  Stage 1: 25 Nm

  Stage 2: 60°
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Remove the special tool.
  Special Tool(s): JLR-303-1636
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Remove the special tool.
  Special Tool(s): JLR-303-1635
Install the upper timing cover.
Refer to: UPPER TIMING COVER .
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Remove the special tool.
  Special Tool(s): JLR-303-1630
NOTE: This step is to make sure that the timing components are properly installed.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

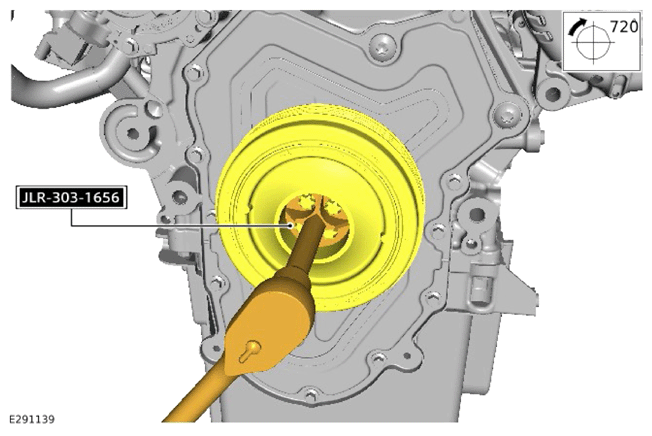

Use the special tool JLR-303-1656 to rotate the crankshaft 2 times clockwise.

Special Tool(s): JLR-303-1656
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Install the charge air radiator bracket.

Torque: 47 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Install the 2 nuts.

Torque: 10 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Install the 3 clips.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Install the 2 fir tree clips.
Install the charge air radiator.
Refer to: CHARGE AIR COOLER .
Install the hood.
Refer to: HOOD .
Connect the startup battery ground cable.
Refer to: STARTUP BATTERY DISCONNECT AND CONNECT .
