Oil Pump (G1997945): Removal

WARNING: This page is about a different variant/trim than selected.

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

Raise and support the vehicle on a suitable 2 post lift.
Refer to: LIFTING .
Disconnect the startup battery ground cable.
Refer to: STARTUP BATTERY DISCONNECT AND CONNECT .
Remove the oil pump chain.
Refer to: OIL PUMP CHAIN .
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

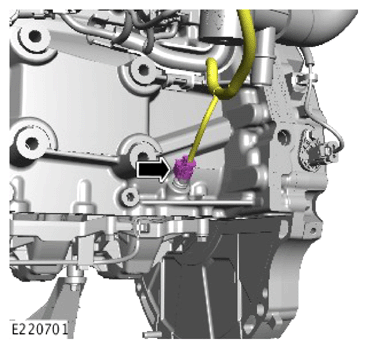

Disconnect the oil pump electrical connector.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

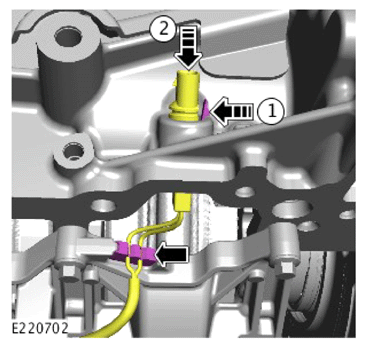

Release the connector from the engine and release the wiring from the retaining clip.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

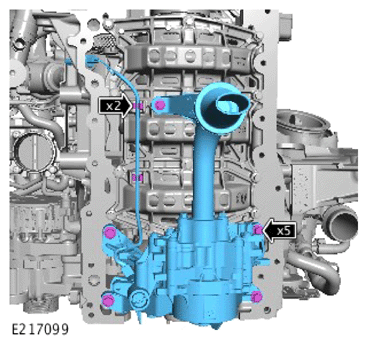

- Release the 2 retaining clips and remove the 5 retaining bolts.
- Remove the oil pump.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

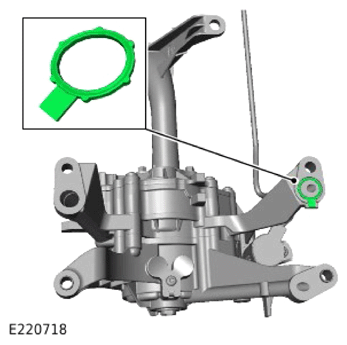

Inspect the seal, replace if damaged.
NOTE: Do not disassemble further if the component is removed for access only.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

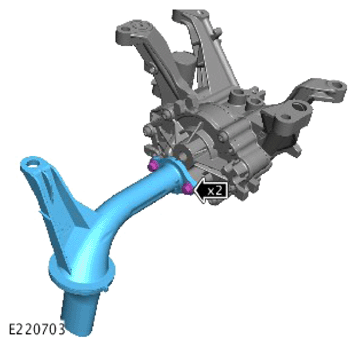

Remove the 2 bolts and remove the oil pick-up pipe.
