Lower Timing Chain (G2132026): Removal

WARNING: This page is about a different variant/trim than selected.

CAUTION: Before disconnecting any components, make sure the area is clean and free from foreign material. When disconnected all openings must be sealed.

NOTE:

This procedure contains some variation in the illustration depending on the vehicle specification, but essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

Raise and support the vehicle on a suitable 2 post lift.
Refer to: LIFTING .
Disconnect the 12 V system.
Refer to: STARTUP BATTERY DISCONNECT AND CONNECT .
Remove the hood.
Refer to: HOOD .
Remove the upper timing cover.
Refer to: UPPER TIMING COVER .
Remove the lower timing cover.
Refer to: LOWER TIMING COVER .
Remove the charge air radiator.
Refer to: CHARGE AIR COOLER .
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Release the 2 fir tree clips.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Release the 3 clips.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the 2 nuts.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the charge air radiator bracket.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Install the special tool JLR-303-1656 as illustrated.
  Special Tool(s): JLR-303-1656

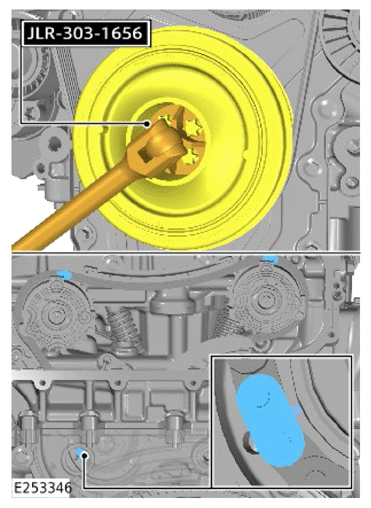

- Use the special tool JLR-303-1656 to rotate the crankshaft until the timing marks align as illustrated.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Make sure that the timing marks aligns as illustrated.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Make sure that the timing marks aligns as illustrated.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Install the special tool JLR-303-1635 as illustrated.
  Special Tool(s): JLR-303-1635
- Install and tighten the 2 special tool bolts.
  Torque: 13 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Install the special tool JLR-303-1636 as illustrated.
  Special Tool(s): JLR-303-1636
- Install and tighten the 2 special tool bolts.
  Torque: 13 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Loosen, but do not fully remove the Variable Camshaft Timing (VCT) bolts.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Remove and discard the upper timing chain tensioner.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Remove the 2 special tool bolts.
- Remove the special tool JLR-303-1636.
  Special Tool(s): JLR-303-1636
CAUTION: Note the location of the VCT units prior to removal. Each VCT unit is matched to a specific camshaft.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Remove and discard the 2 VCT unit center bolts.
- Remove the 2 VCT units.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Remove and discard the 2 bolts.
- Remove and discard the upper timing chain guide.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Remove and discard the bolt.
- Remove and discard the left timing chain guide.
- Remove and discard the timing chain tensioner guide.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Release the timing chain from the idler sprocket and remove.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove and discard the timing chain guide bolt.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Remove and discard the 2 bolts.
- Remove and discard the lower timing chain tensioner.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Remove and discard the bolt.
- Remove and discard the timing chain tensioner guide
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Remove and discard the bolt.
- Remove and discard the timing chain guide.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove and discard the idler sprocket.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the lower timing chain.
