Left Engine Mount (G1997936): Removal

WARNING: This page is about a different variant/trim than selected.

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustration showing certain components removed to provide extra clarity.
This procedure contains steps that are model and model year specific. These are detailed in the applicable steps.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the engine mount to engine bracket nut.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the engine mount to subframe bolts.
Raise and support the vehicle on a suitable 2 post lift.
Refer to: LIFTING .

General Equipment: 2 post lift
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Disconnect the vacuum pipe from the engine mount.
Remove the air deflector.
Refer to: ENGINE UNDERSHIELD .
Lower the vehicle on the lift to an appropriate working height.
CAUTION: Use a suitable 100 mm X 100 mm block of wood to support the engine.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

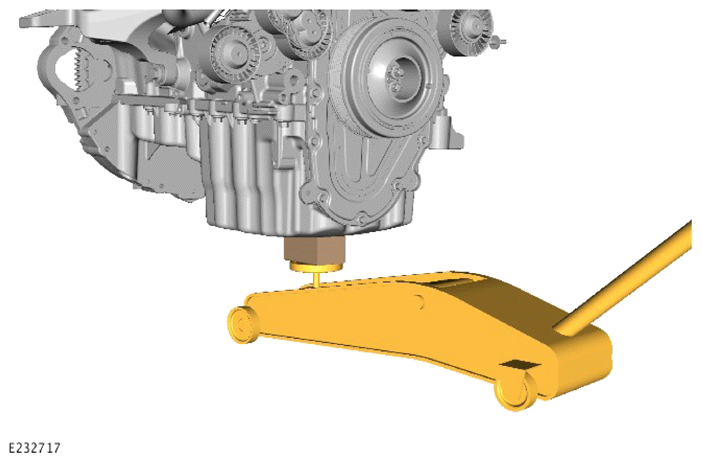

Using a suitable hydraulic jack support the engine as highlighted in the illustration.

General Equipment: Hydraulic floor jacks (2 tonnes minimum capacity)
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the engine mount from the vehicle.
NOTE:
- This step is only required if a new engine mount is to be installed.
- This step only applies to L560 vehicles manufactured up to 10/2020 and X761 vehicles manufactured up to 09/2020.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

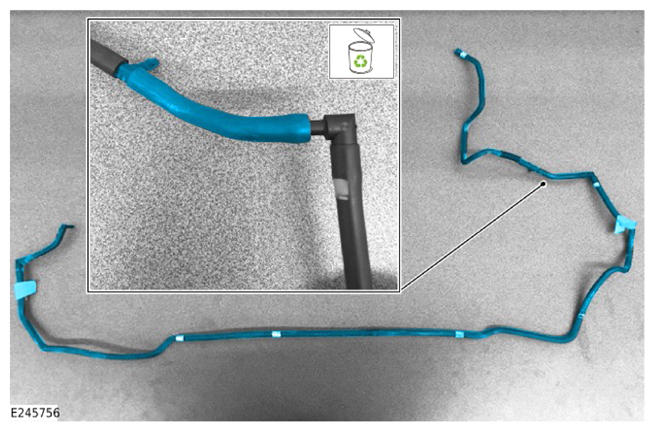

Remove and discard the section of active engine mount vacuum hose.
