Intake Camshaft (G2029692): Installation

WARNING: This page is about a different variant/trim than selected.
  1. G11306869Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Install the inlet camshaft.
    • Install the camshaft bearing caps into the previously noted position. Lubricate each of the camshaft lobes and thrust faces with a small quantity of clean engine oil.

      Refer to: SPECIFICATIONS .

      Torque: 12 Nm

  2. G11306865Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Install a new valve cover gasket.

    Renew Part: Camshaft cover gasket  Quantity: 1.

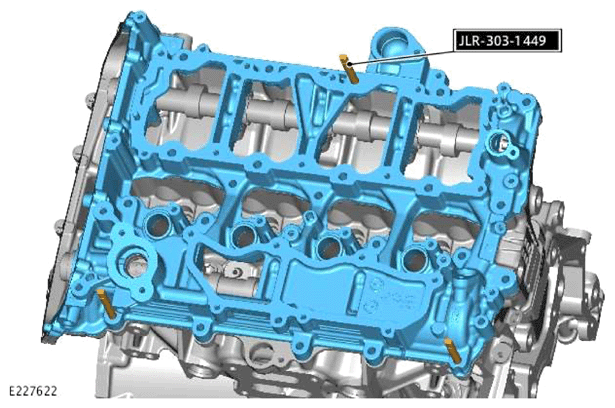

  3. G13883536Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Install the valve cover.
    • Install the 3 guide pins as illustrated.

      Install the Special Tool(s): 303-1449-01

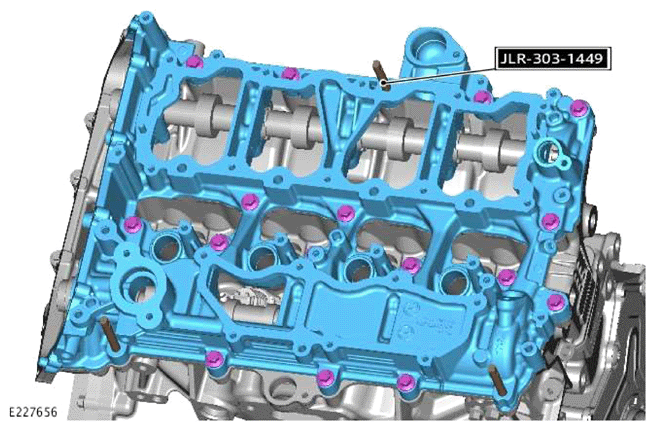

  4. G13883537Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Install the 16 bolts.

      Torque: 10 Nm

  5. G11306871Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Remove the 3 guide pins and install the 3 retaining bolts.

      Torque: 10 Nm

    • Tighten the bolts in the sequence illustrated to the final torque figure.

      Torque: 28 Nm

    • Install the engine coolant bypass hose into the correct position.

      Torque: 10 Nm

  6. Install the 2 engine cover support mounts.

    Torque: 6 Nm

  7. G11306872Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Install the wiring harness into the correct position.
    • Install the 2 retaining bolts.

      Torque: 6 Nm

    • Connect the 8 electrical connectors.
  8. Install the accessory drive belt.

    Refer to: ACCESSORY DRIVE BELT .

  9. Install the High Pressure (HP) fuel pump.

    Refer to: HIGH PRESSURE FUEL PUMP (G2043272)

  10. Install the purge valve assembly.

    Refer to: EVAPORATIVE EMISSION CANISTER (G1914787)

  11. Install the engine vent oil separator assembly.

    Refer to: VALVE COVER VENT OIL SEPARATOR .

  12. Install the fuel injectors.

    Refer to: FUEL INJECTORS (G1998238)

  13. Install the Continuous Variable Valve Lift (CVVL) assembly.

    Refer to: CONTINUOUS VARIABLE VALVE LIFT .

  14. Install the upper timing chain.

    Refer to: UPPER TIMING CHAIN .

  15. Connect the startup battery ground cable.

    Refer to: STARTUP BATTERY DISCONNECT AND CONNECT .
