Engine Front Cover (G2046459): Removal

WARNING: This page is about a different variant/trim than selected.

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

Raise and support the vehicle on a suitable 2 post lift.
Refer to: LIFTING .
Disconnect the 12 V system.
Refer to: STARTUP BATTERY DISCONNECT AND CONNECT .
Drain the engine oil.
Refer to: ENGINE OIL VACUUM DRAINING AND FILLING .
Remove the accessory drive belt.
Refer to: ACCESSORY DRIVE BELT .
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the accessory drive belt idler pulleys.
CAUTION: Make sure that the special tool is correctly located.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

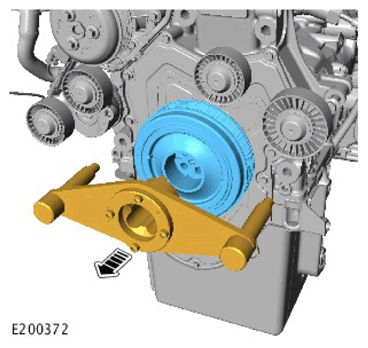

Install the special tool onto the crankshaft pulley.

Special Tool(s): JLR-303-1630
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

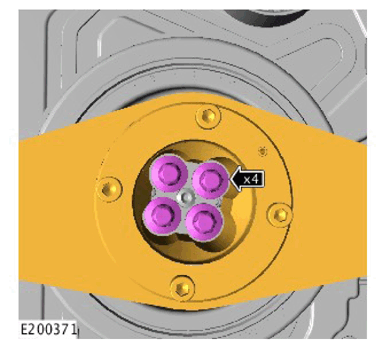

Remove and discard the 4 crankshaft pulley retaining bolts.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Remove the crankshaft pulley special tool.
  Special Tool(s): JLR-303-1630
- Remove the crankshaft pulley.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Remove the 12 bolts.
- Remove the engine front cover.
