Engine - INGENIUM I4 2.0L Petrol (G2289429): Installation: Engine: Part(S)

WARNING: This page is about a different variant/trim than selected.

STEP	PART NAME	QUALIFICATION	QUANTITY
Step 10	Halfshaft support bracket o-ring seal	Vehicles with All Wheel Drive (AWD)	1

WARNING:

Be prepared to collect escaping fuel.
Be prepared to collect escaping coolant.

CAUTION: Before disconnecting any components, make sure the area is clean and free from foreign material. When disconnected all openings must be sealed.

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

The following step(s) applies to:

All vehicles

Before working on the fuel system make sure to study the fuel system health and safety article of this service information.
Refer to: PETROL AND PETROL-ETHANOL FUEL SYSTEMS HEALTH AND SAFETY PRECAUTIONS .
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

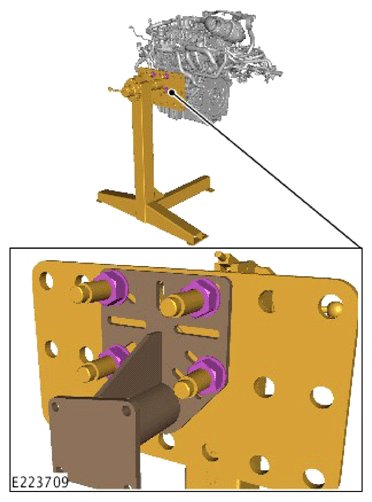

- Remove the 4 nuts.
- Release the bracket from the engine stand.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

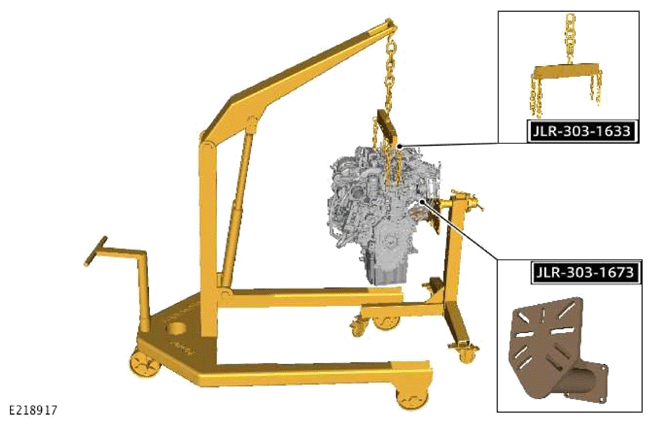

Use a suitable hydraulic crane to remove the engine assembly from the engine stand.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

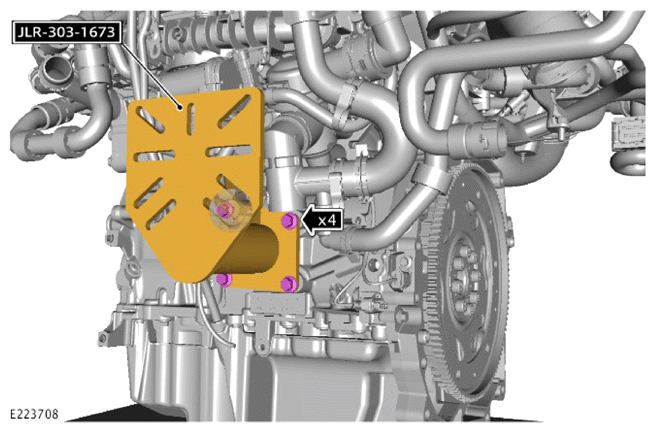

- Remove the 4 bolts.
- Remove the engine stand adapter tool.
  Special Tool(s): JLR-303-1673

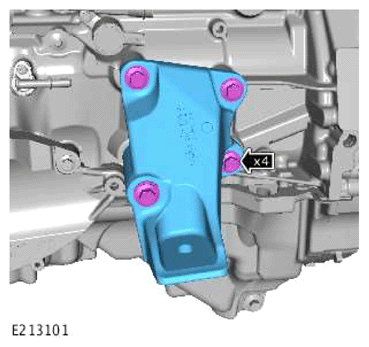

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Install the left engine mount bracket.
- Install and tighten the 4 bolts.
  Torque: 63 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Use the special tool and a suitable hydraulic crane to install the engine into the vehicle.
  Special Tool(s): JLR-303-1633

  General Equipment: Hydraulic jib crane
- Make sure care is taken when aligning the engine mount studs.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

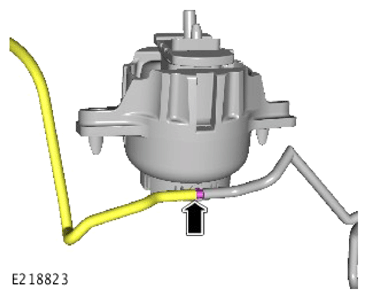

Install and tighten the nut.

Torque: 60 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Install and tighten the nut.

Torque: 60 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

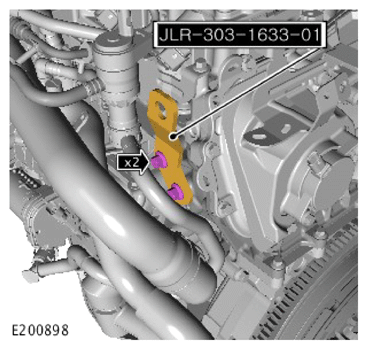

- Remove the 2 bolts.
- Remove the special tool.
  Special Tool(s): JLR-303-1633-01
The following step(s) applies to:

Vehicles with All Wheel Drive (AWD)
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

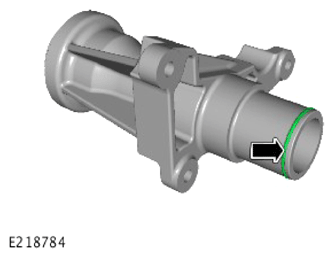

Install a new seal.

Renew Part: Halfshaft support bracket o-ring seal Quantity: 1.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

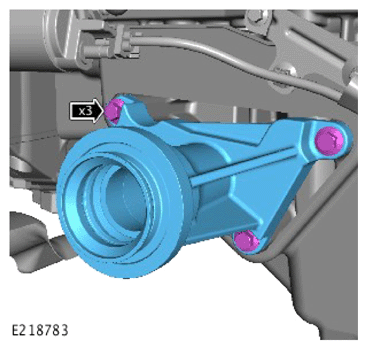

- Install the halfshaft support bracket.
- Install and tighten the 3 bolts.
  Torque: 25 Nm
The following step(s) applies to:

All vehicles
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Connect the vacuum hose.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Connect the 2 coolant hoses at the right side of the engine.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Connect the 3 coolant hoses at rear of the engine.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

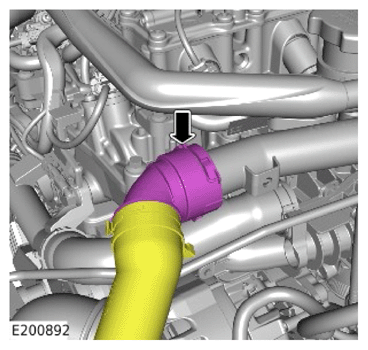

Connect the coolant top hose to the engine.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Connect the fuel supply and purge tube quick release connections.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Connect the 2 electrical connectors.

Torque: 3.6 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Install the left side body brace.
- Install and tighten the 4 bolts.
  Torque: 55 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Connect the startup battery positive cable to the starter motor junction box.
- Install and tighten the nut.
- Install the cover.
  Torque: 12 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Connect the block heater wiring harness.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Install the fluid cooler pipe bolt.

Torque: 12 Nm
Install the air conditioning (AC) compressor.
Refer to: AIR CONDITIONING COMPRESSOR - INGENIUM I4 2.0L PETROL .

The following step(s) applies to:

Vehicles with All Wheel Drive (AWD)
Install both the halfshafts.
Refer to: FRONT HALFSHAFT .

The following step(s) applies to:

All vehicles
Install the transmission.
Refer to: TRANSMISSION - INGENIUM I4 2.0L PETROL .

Refer to: TRANSMISSION - INGENIUM I4 2.0L PETROL .
Install the catalytic converter.
Refer to: CATALYTIC CONVERTER AND GASOLINE PARTICULATE FILTER ASSEMBLY - VEHICLES WITH: NAS SPECIFICATION .

Refer to: CATALYTIC CONVERTER AND GASOLINE PARTICULATE FILTER ASSEMBLY - VEHICLES WITH: NAS SPECIFICATION .
Install the radiator.
Refer to: RADIATOR .
Install the charge air cooler.
Refer to: CHARGE AIR COOLER .
Install the secondary bulkhead left panel.
Refer to: SECONDARY BULKHEAD LEFT PANEL - INGENIUM I4 2.0L PETROL .
Install the cowl panel.
Refer to: COWL PANEL .
Install the hood.
Refer to: HOOD .
Connect the startup battery ground cable.
Refer to: STARTUP BATTERY DISCONNECT AND CONNECT .
