Noise, Vibration And Harshness Pads
WARNING: This page is about a different variant/trim than selected.

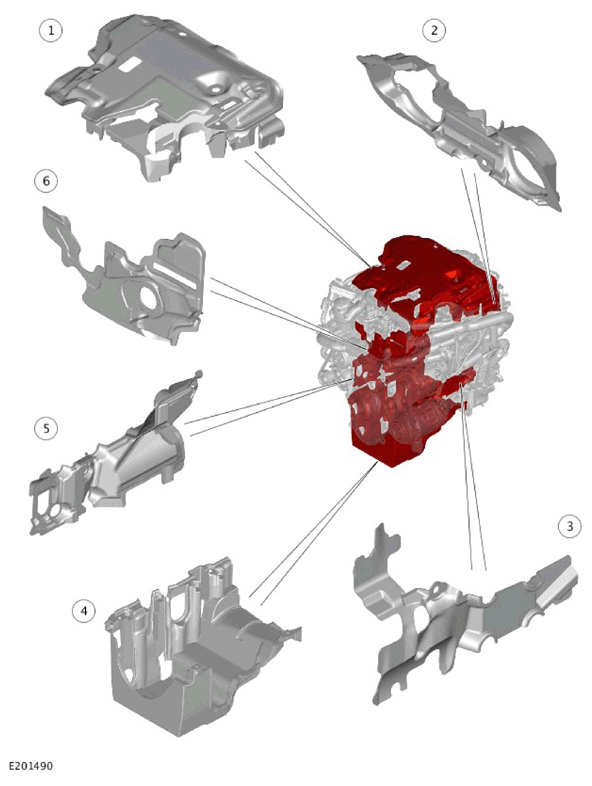

Noise, Vibration and Harshness Pads - Vehicles With Rear Wheel Drive
| ITEM | DESCRIPTION |
|---|---|
| 1 | Noise, Vibration and Harshness (NVH) pad - Cylinder head top |
| 2 | NVH pad - Cylinder head rear |
| 3 | NVH pad - Cylinder block left |
| 4 | NVH pad - Oil pan |
| 5 | NVH pad - Cylinder block right |
| 6 | NVH pad - Front upper |

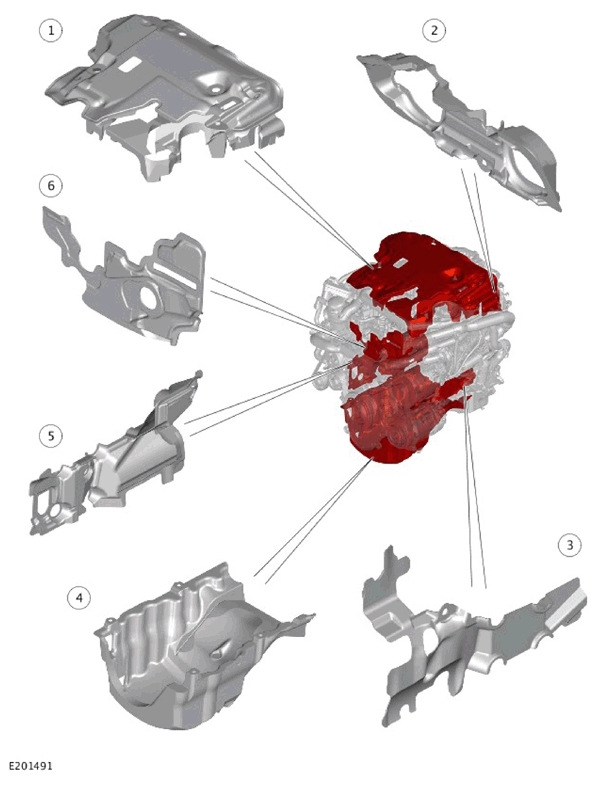

Noise, Vibration and Harshness Pads - Vehicles With All Wheel Drive
| ITEM | DESCRIPTION |
|---|---|
| 1 | Noise, Vibration and Harshness (NVH) pad - Cylinder head top |
| 2 | NVH pad - Cylinder head rear |
| 3 | NVH pad - Cylinder block left |
| 4 | NVH pad - Oil pan |
| 5 | NVH pad - Cylinder block right |
| 6 | NVH pad - Front upper |
Noise, Vibration and Harshness (NVH) pads are fitted on the Ingenium I4 2.0L Petrol engine in order to reduce NVH experienced by the driver or passenger(s). The pads are made of either a PUR foam or a multi layer mixed fiber and resin laminate composite depending on application.
The NVH package consists of a pad for each side of the engine cylinder block, an engine cover located on the top of the engine and an oil pan cover.
