Transmission Fluid Cooler: Removal

WARNING: This page is about a different variant/trim than selected.
CAUTION:
  • Before disconnecting any components, make sure the area is clean and free from foreign material. When disconnected all openings must be sealed.
  • Be prepared to collect escaping fluids.
NOTE:
  • Removal steps in this procedure may contain installation details.
  • Some variation in the illustrations may occur, but the essential information is always correct.
  1. WARNING: Make sure to support the vehicle with axle stands.

    Raise and support the vehicle.

  2. Refer to: TRANSMISSION FLUID DRAIN AND REFILL
  3. Refer to: COOLING SYSTEM PARTIAL DRAINING AND VACUUM FILLING (G2226946)
  4. CAUTION: Be prepared to collect escaping fluids.

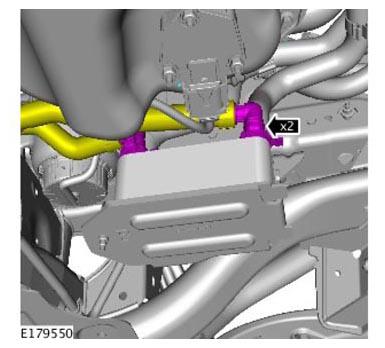

    G11324194Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
  5. CAUTION: Be prepared to collect escaping fluids.

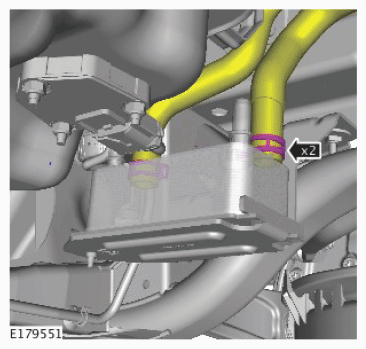

    G11329430Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
  6. CAUTION: Be prepared to collect escaping fluids.

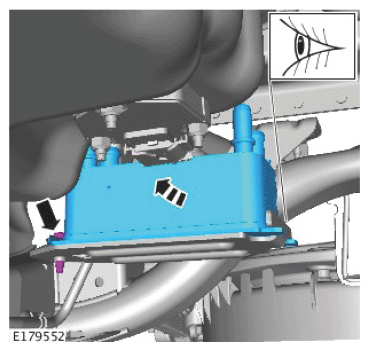

    G11329431Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Torque  : 5 Nm
