Rear Knock Sensor (G2031026): Removal

WARNING: This page is about a different variant/trim than selected.

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

Raise and support the vehicle on a suitable 2 post lift.
Refer to: LIFTING
Disconnect the startup battery ground cable.
Refer to: STARTUP BATTERY DISCONNECT AND CONNECT
Remove the intake manifold.
Refer to: INTAKE MANIFOLD
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

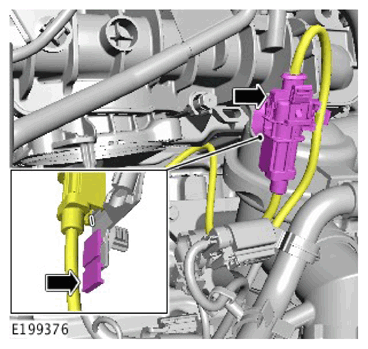

Disconnect the electrical connector.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

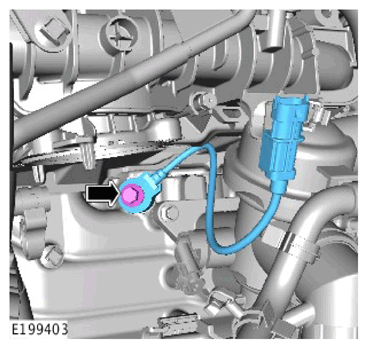

Remove the knock sensor.
