Piston Cooling Oil Jet Solenoid (G2130910): Removal

WARNING: This page is about a different variant/trim than selected.

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

The following step(s) applies to:

All vehicles

Remove the generator.
Refer to: GENERATOR

The following step(s) applies to:

Cold climate vehicles
Remove the block heater.
Refer to: BLOCK HEATER

The following step(s) applies to:

All vehicles
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

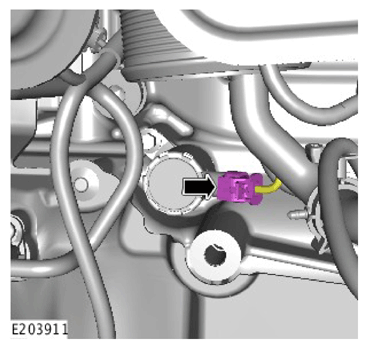

Remove the electrical connector.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

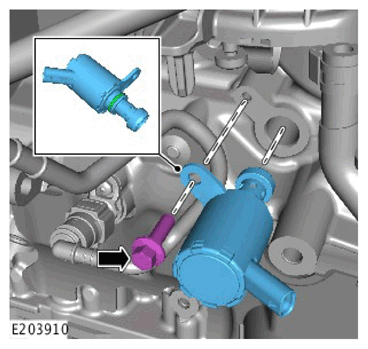

Remove the Piston Cooling Jet (PCJ) Solenoid.
