Fuel Rail Pressure Sensor (G2289191): Notes

WARNING: This page is about a different variant/trim than selected.

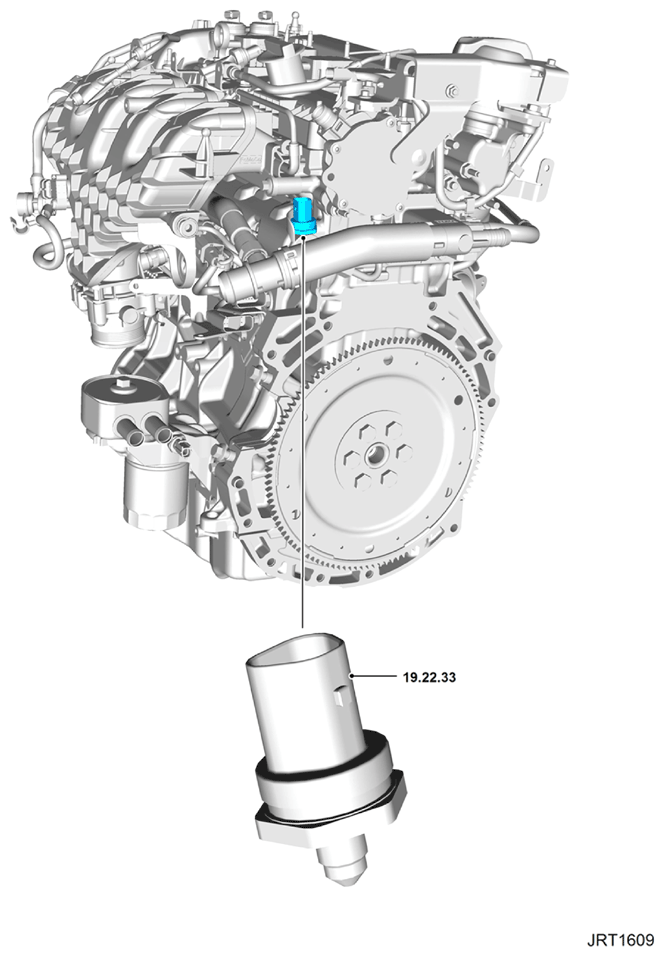

19.22.33 SENSOR - FUEL PRESSURE - RENEW 2000 CC, GTDI 0.20
G13974234Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

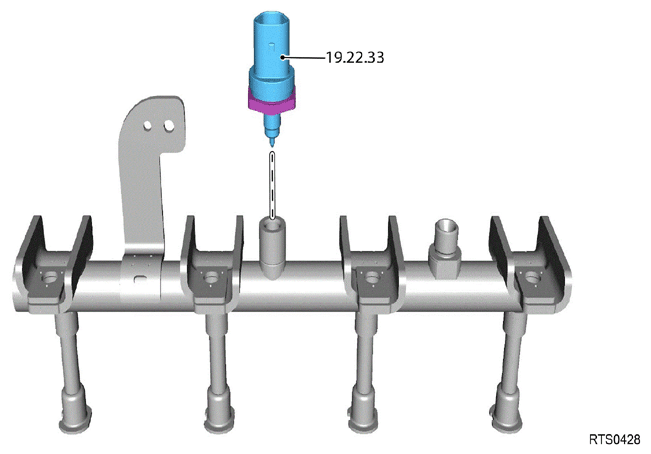

19.22.33 SENSOR - FUEL PRESSURE - RENEW 2000 CC, INGENIUM PETROL 0.10
G13889168Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

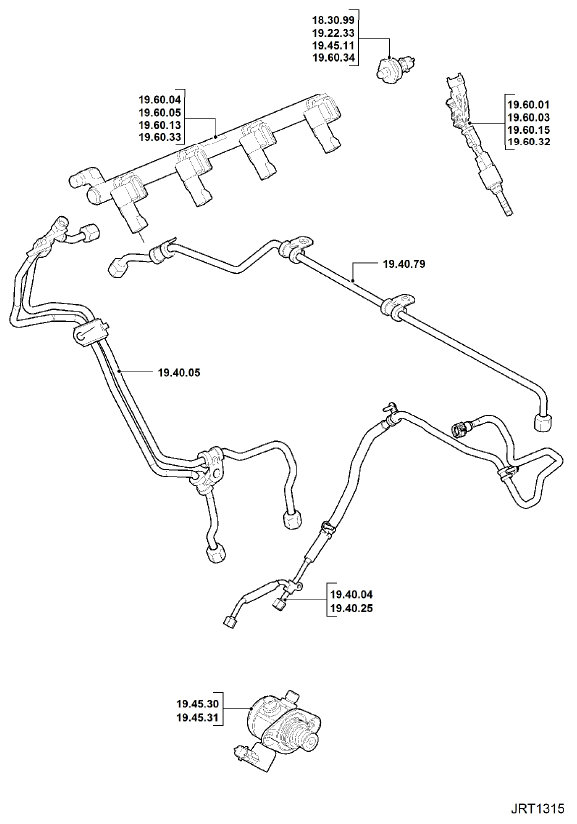

19.22.33 SENSOR - FUEL PRESSURE - RENEW 3000 CC, AJ V6 (AJ126) 0.50
G11346210Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
19.60.34 FUEL DIVERTER RAIL AND FUEL INJECTION PRESSURE SENSOR ASSEMBLY - RENEW 3000 CC, AJ V6 (AJ126) 0.80
G11344203Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
