Cylinder Head Temperature Sensor (G2031747): Removal
WARNING: This page is about a different variant/trim than selected.
NOTE:
- This procedure contains some variation in the illustration depending on the vehicle specification, but essential information is always correct.
- This procedure contains illustrations showing certain components removed to provide extra clarity.
- Remove the intake air resonator.
Refer to: INTAKE AIR RESONATOR
-
CAUTION: This is a single use component and must be renewed if removed.

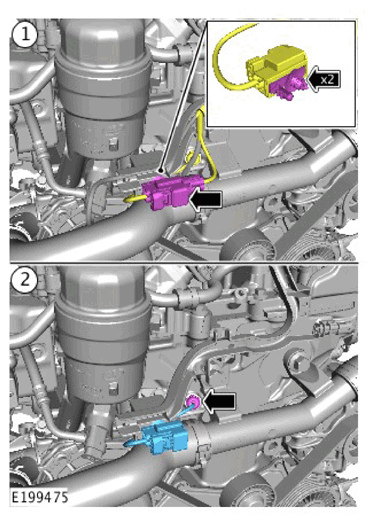

- Disconnect the electrical connector.
- Slide the retaining clip from the back of the electrical connector.
- Remove the cylinder head temperature sensor.
