Cylinder Block Temperature Sensor (G2031746): Removal
WARNING: This page is about a different variant/trim than selected.
NOTE:
- This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
- This procedure contains illustrations showing certain components removed to provide extra clarity.
- Raise and support the vehicle on a suitable 2 post lift.
Refer to: LIFTING
- Remove the generator.
Refer to: GENERATOR
-
CAUTION: This is a single use component and must be renewed if removed.

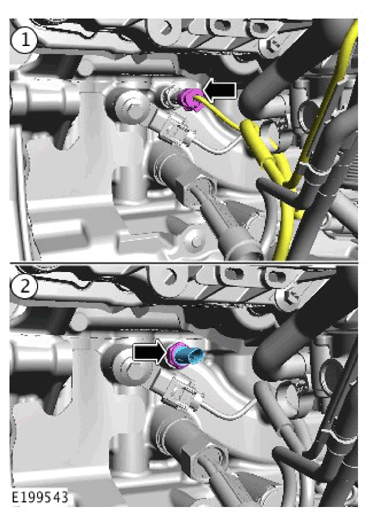

- Disconnect the electrical connector.
- Remove the cylinder block temperature sensor.
