Electric Cooling Fan

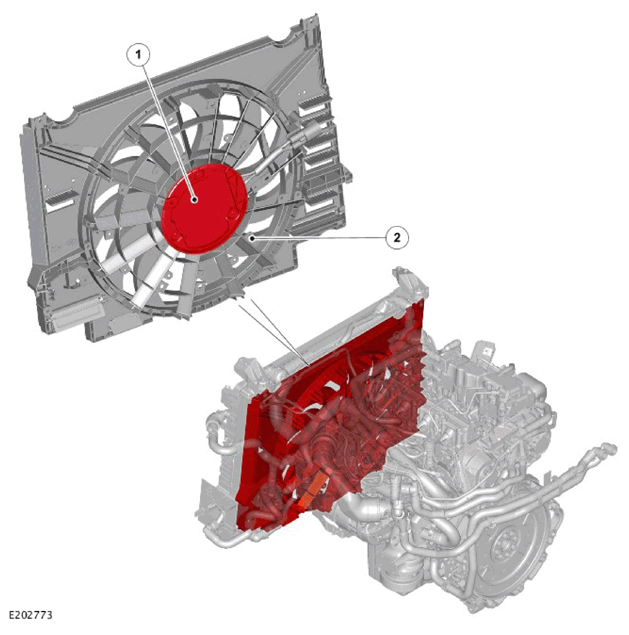

| ITEM | DESCRIPTION |
|---|---|
| 1 | Electric cooling fan |
| 2 | Electric cooling fan shroud |
The electric cooling fan is installed in a shroud which is attached to the rear of the radiator and secured with 3 screws. The electric cooling fan is operated by the engine cooling fan control module. The engine cooling fan control module is integrated into the electric cooling fan. An electrical connector at the right side of the shroud provides the interface between the cooling fan harness and the vehicle wiring.
The engine cooling fan control module is controlled by the Powertrain Control Module (PCM) via a Pulse Width Modulation (PWM) signal. A permanent startup battery voltage is supplied from the right Engine Junction Box (EJB).
The PCM varies the duty cycle of the PWM signal between 0 % and 100 % to operate the electric cooling fan motor in 1 of 4 modes:
- Off.
- Minimum speed - 750 Revolutions Per Minute (RPM).
- Linear variable speed between minimum and maximum speeds.
- Maximum speed - 2, 820 RPM.
The electric cooling fan incorporates a temperature sensor to prevent damage caused by excessive heat at high ambient temperatures. Operation of the electric cooling fan is discontinued if the temperature reaches 135°C (275°F). Operation resumes when the temperature decreases to 120°C (248°F).
